$17,500.00

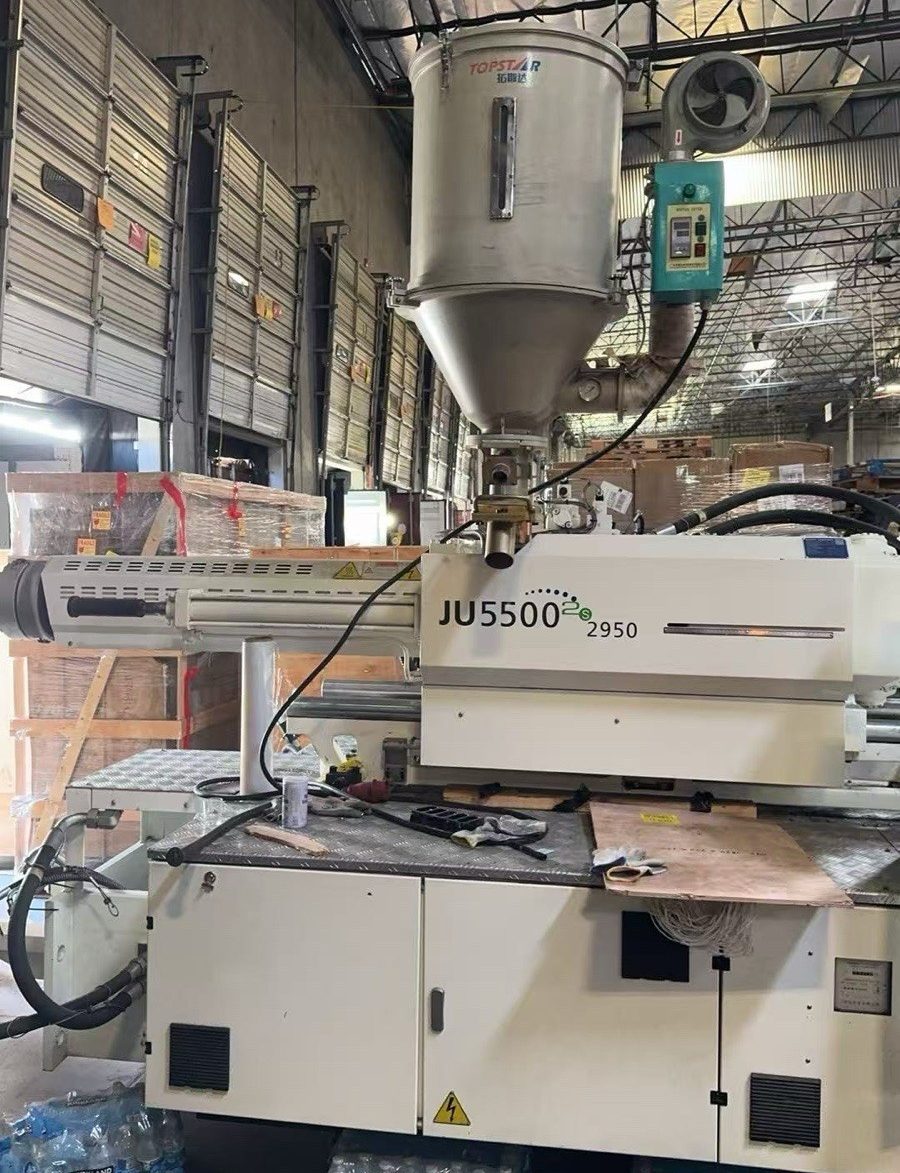

Contact UsHot Sale JU5500 Plastic injection molding machine Only USD $17.500.00 Good Condition adn Ready To Use, Come 1 year warranty. This is a used plastic injection molding machine suitable for business and industrial purposes. It is designed to process engineering equipment for plastic molding. The machine is ideal for manufacturing plastic products in bulk. The machine type is an injection molding machine, and it is made for processing plastic materials.
JU5500 Plastic injection molding machine Specifications
- Clamping Force: 5,500 kN
- Distance Between Tie Bars (H x V): 920 mm × 830 mm
- Maximum Mold Height: 900 mm
- Minimum Mold Height: 350 mm
- Maximum Daylight: 1,650 mm
- Mold Opening Stroke: 1,300 mm / 750 mm
- Maximum Mold Weight: 8 tons
- Ejector Stroke: 250 mm
- Ejector Force: 110 kNÂ
Injection Unit Options (3450 Unit)
   The machine can be configured with different screw diameters depending on shot capacity requirements:Â
| Parameter | Screw A | Screw B | Screw C | Screw D |
|---|---|---|---|---|
| Screw Diameter | 70 mm | 80 mm | 85 mm | 90 mm |
| Screw L/D Ratio | 22.9 | 20.0 | 18.9 | 17.8 |
| Injection Volume | 1,424 cm³ | 1,860 cm³ | 2,100 cm³ | 2,354 cm³ |
| Injection Weight (PS) | 1,296 g | 1,692 g | 1,911 g | 2,142 g |
| Injection Rate | 385 g/s | 503 g/s | 567 g/s | 636 g/s |
| Injection Pressure (Max) | 239 MPa | 183 MPa | 162 MPa | 145 MPa |
| Maximum Screw Speed | 220 rpm | 220 rpm | 220 rpm | 220 rpm |
Footprint & General Data
- Total Power Consumption: ~130 kW total power
- Machine Net Weight: 23 to 26 tons depending on configuration
- Approximate Dimensions (L x W x H): ~7.16 m to 8.37 m × 2.58 m × 2.51 m
- Oil Tank Capacity: 430 to 510 Liters
- Control System: Austrian KEBA controller with “Go Factory 2.0” digital intelligent management software
