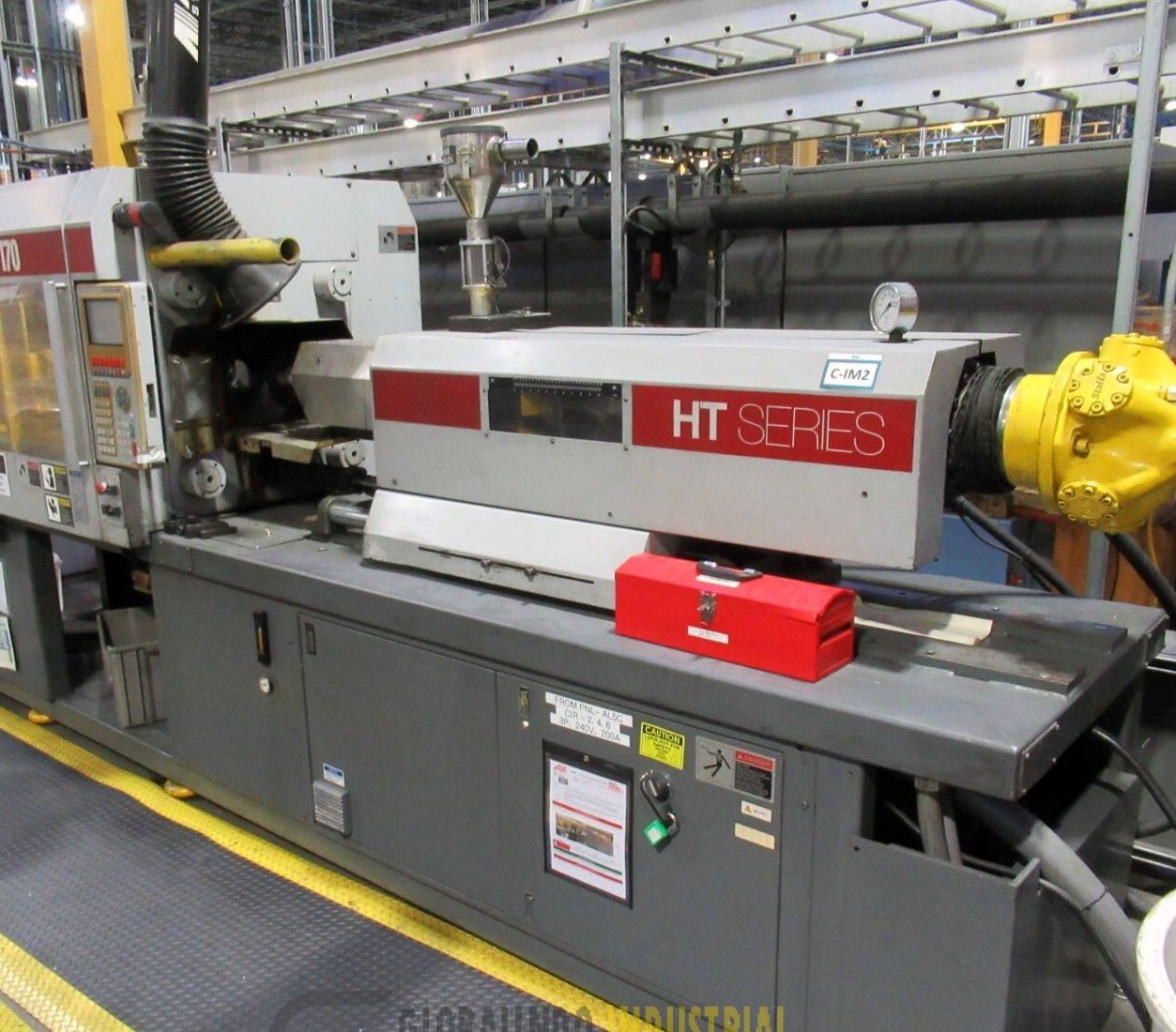

Van Dorn HT170-9.4 Injection Molding Machine

Hot sale Van Dorn HT170-9.4 Injection Molding Machine only $ 10.200. Come with 1 year warranty.  The Van Dorn HT170-9.4 Injection Molding Machine is a specific type of machine designed for injection molding processes. With a Machine Type of Injection Molding Machine, this equipment is suitable for plastic molding applications. It falls under categories such as Plastic Molding Machines, Plastic Processing Equipment, and Process Engineering Equipment, making it a valuable asset in industries related to CNC, Metalworking & Manufacturing, and Business & Industrial. The model number HT170-9.4 likely indicates specific technical specifications and capabilities of this injection molding machine. The Van Dorn HT170-9.4 is a 170-ton hydraulic toggle clamp injection molding machine. Manufactured under the Van Dorn / Van Dorn Demag brand, the “HT170” indicates its 170-ton clamping force, while the “9.4” signifies its specific injection unit size capacity.

• Clamping Force: 170 Tons
• Clamp Type: Hydraulic Toggle
• Tie Bar Spacing: 20″ x 20″
• Platen Size: 29″ x 29″
• Clamp Stroke: 17 inches
• Maximum Daylight: 35 inches
• Mold Thickness: 6 inches minimum to 18.5 inches maximum
• Ejector Stroke: 4 inches

• Shot Capacity (9.4 Injection Unit): Typically delivers a shot size of approximately 8.0 to 10.7 ounces depending on the installed screw diameter (commonly outfitted with a 1.77-inch screw).
• L/D Ratio: 20:1 standard barrel ratio.
• Barrel Control: Multi-zone state temperature control.

• Control System: Typically equipped with legacy Sumitomo (SHI) Demag Pathfinder series controllers (such as the Pathfinder 2500 or 5000).
• Core Pull capabilities: Frequently configured with single or dual core pull hydraulic valves for complex molds.
• Power Requirements: 480V / 3-Phase / 60Hz configuration is standard for industrial environments
