HOT SALE !!! CNC metal cutting machine Hypertherm HPR-260XD plasma with an Oxipira 10’x25′, ONLY $ 49.000. The industrial-grade Oxipira 10′ x 25′ CNC Plasma Cutting Machine integrated with a Hypertherm HPR-260XD HyPerformance Plasma Power Source is a high-precision, heavy-duty production system. It is designed for fine-feature cutting, high processing speeds, and minimal operating costs. This machine is industrial grade and very precise. You can cut up to 2.1/2″ thick steel. Can also cut aluminum and Stainless Steel
Hypertherm HPR 260XD Plasma source
Ingersoll Rotary Screw Air Compressor

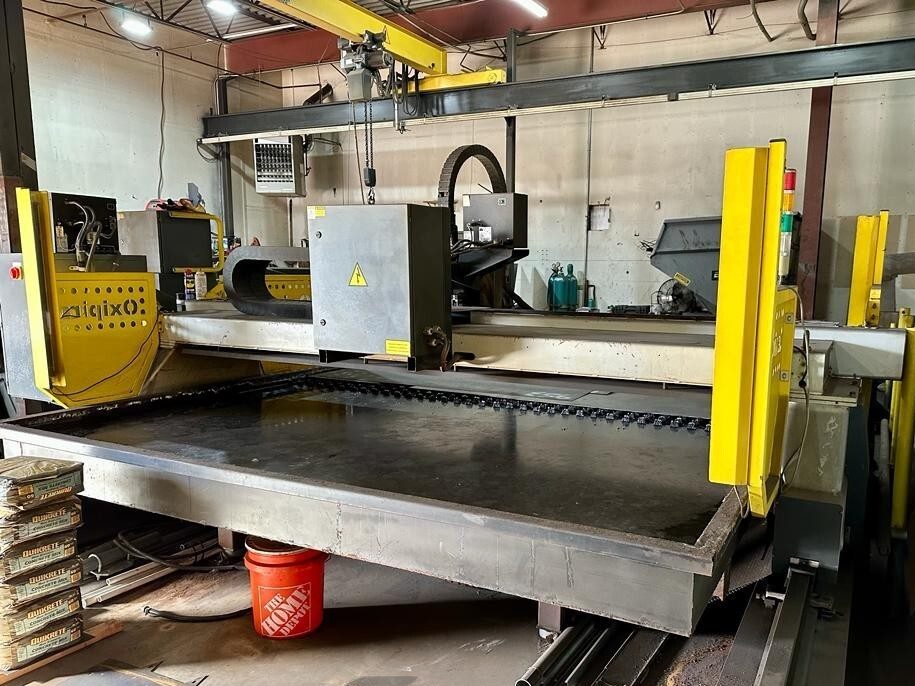

Oxipira Master 10’x25′ CNC plasma cutting machine
Oxipira 10’x25′ CNC Gantry & Table Specifications
The Oxipira Master/Shape Runner series features a heavy-duty industrial gantry driven by high-torque servo motors and a rack-and-pinion system to ensure maximum positioning accuracy.
- Effective Cutting Width: 10 feet (3.05 meters)
- Effective Cutting Length: 25 feet (7.62 meters)
- Drive System: Dual-drive X-axis (both sides of the gantry) with precision rack-and-pinion and linear guide rails
- Table Type: Typically equipped with an automated down-draft fume extraction table or a water table
- CNC Controller: Commonly integrated with Hypertherm EDGE Pro CNC or equivalent industrial controllers featuring automated nesting software
- Torch Height Control (THC): Command THC or similar high-speed automated voltage height control
Hypertherm HPR-260XD Plasma Source Specifications
The Hypertherm HPR-260XD is a 260-amp system utilizing HyDefinition® technology to align and focus the plasma arc for laser-like cut quality.
Material Thickness Capabilities
| Material |
Dross-Free Cut Capacity |
Production Pierce Capacity |
Maximum Severance Capacity |
| Mild Steel |
1-1/4″ (32 mm) |
1-1/2″ (38 mm) |
2-1/2″ (64 mm) |
| Stainless Steel |
N/A |
1-1/4″ (32 mm) |
2″ (50 mm) |
| Aluminum |
N/A |
1″ (25 mm) |
2″ (50 mm) |
Electrical and Operational Data
- Rated Output Current: 30 A to 260 A
- Rated Output Voltage: 175 VDC
- Duty Cycle: 100% at 260 A (Engineered for continuous industrial production)
- Open Circuit Voltage (OCV): Up to 311 VDC
- Gas Consoles: Available in Manual Gas or Automatic Gas options (Auto Gas optimizes True Hole® technology for bolt-ready hole accuracy).
Gas Requirements (Plasma / Shield)
- Mild Steel: O₂ / Air
- Stainless Steel: F5 or H35 or N₂ / N₂ or CO₂
- Aluminum: H35 or N₂ / N₂ or Air
Key Performance Technologies
- True Hole Technology: Automatically matches the specific gas mix and CNC torch movements to eliminate hole taper.
- PowerPierce Technology: Employs liquid-cooled shield technology to repel molten metal spatter during heavy plate piercing.
- LongLife Technology: Dramatically extends consumable life by reducing electrode and nozzle wear during arc ramp-up and ramp-down
