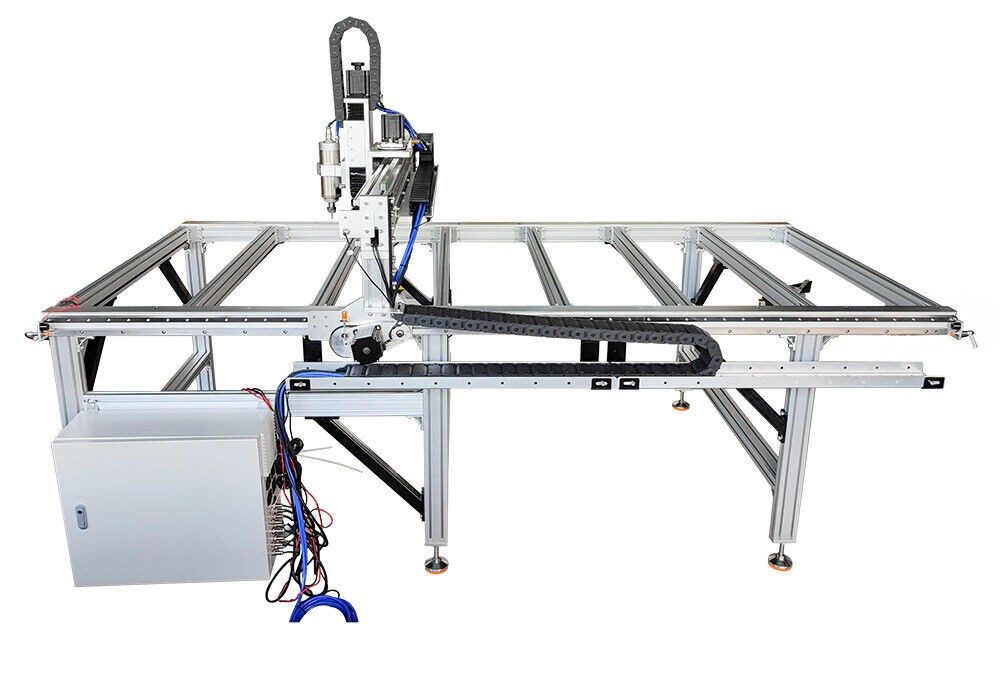

CNC 1325 Pro Engraving Machine 2.2KW CNC Router Woodworking Machine Automatic

Condition : New

Compare

$8,900.00

Contact Us

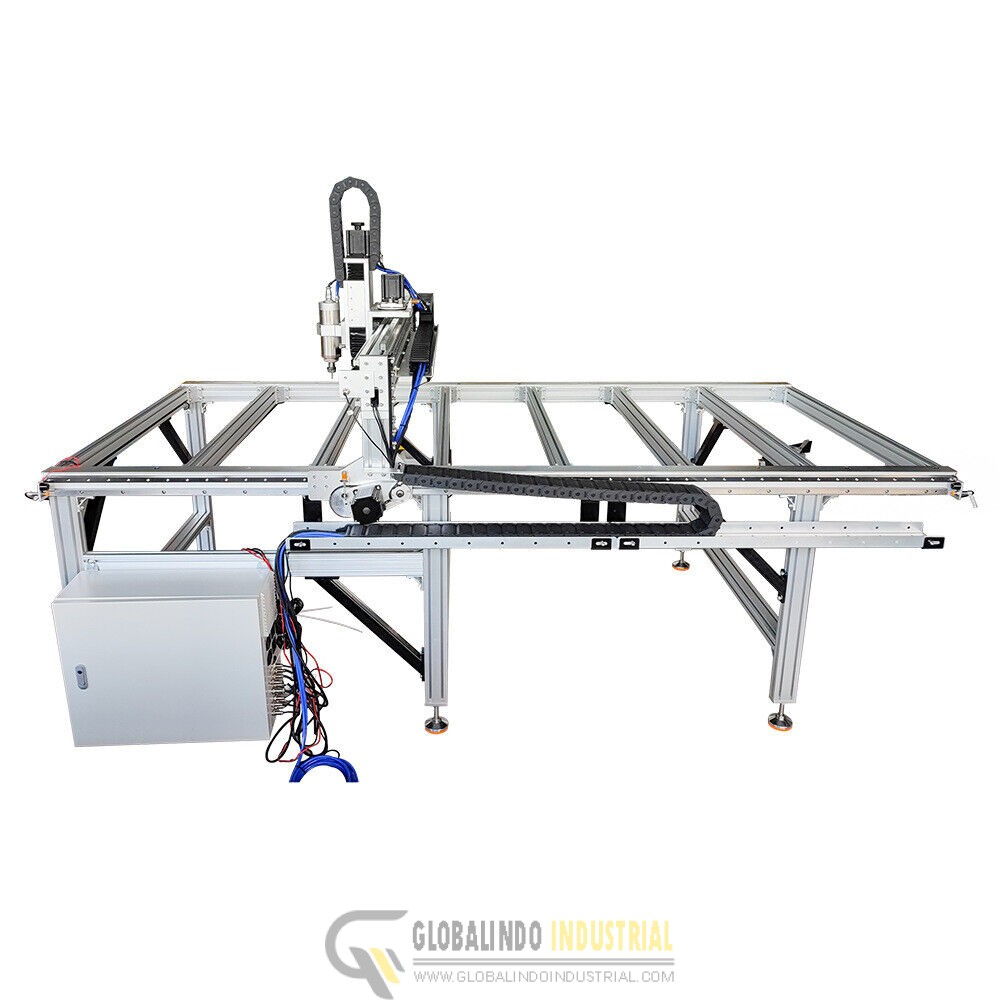

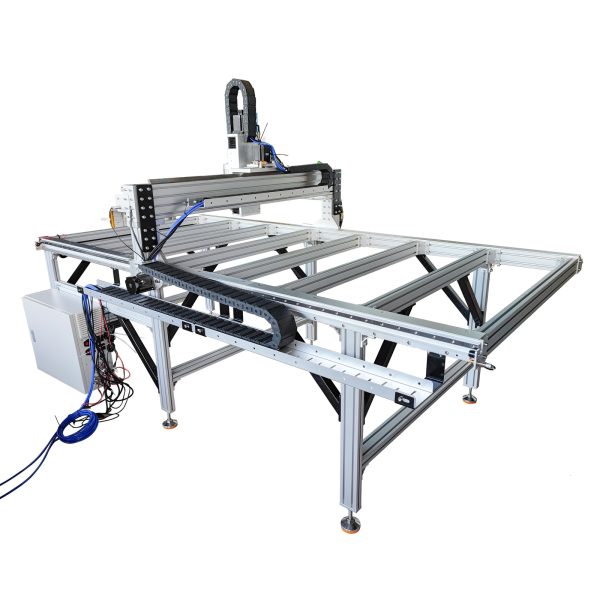

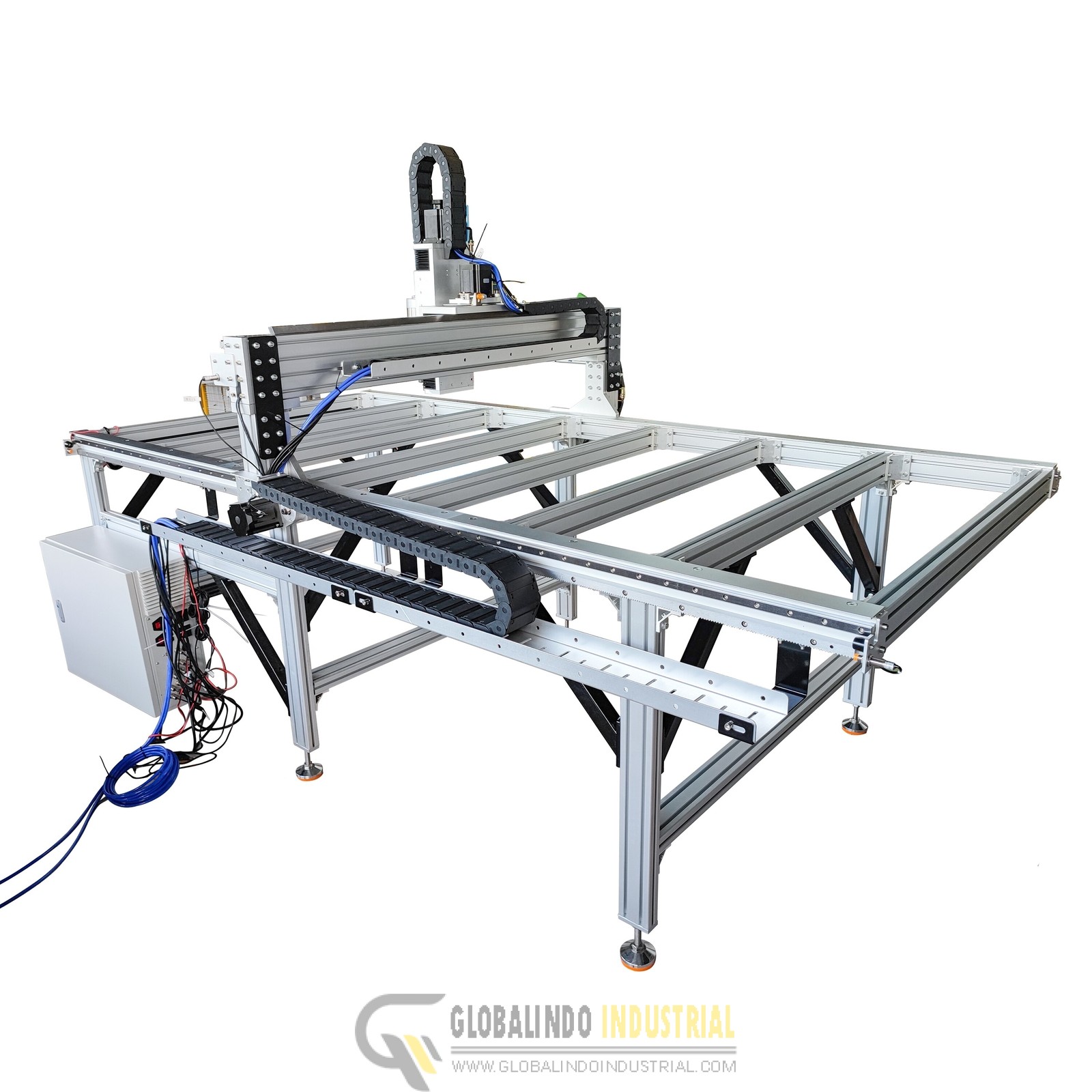

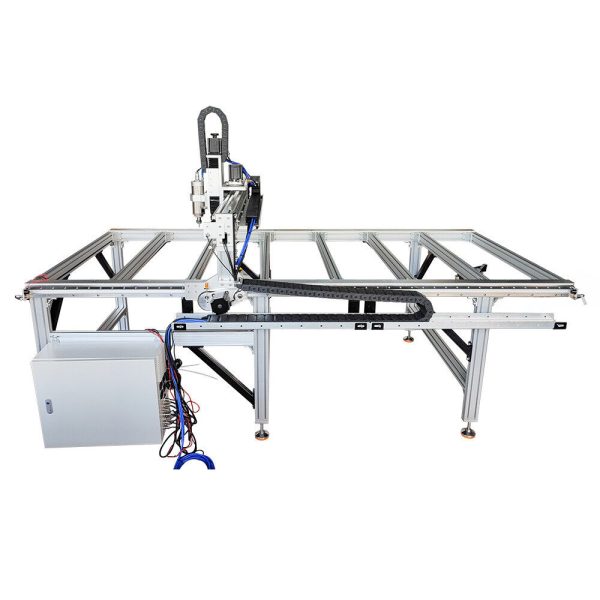

HOT SALE !!! CNC 1325 Pro Engraving Machine 2.2KW CNC Router Woodworking Machine Automatic only $ 8.900. Come with 1 year warranty. The CNC 1325 Pro Engraving Machine (2.2KW Automatic) is a heavy-duty, industrial-grade 3-axis CNC router optimized for precise woodworking, cabinetry, and signage. The designation “1325” refers directly to its spacious 1300 mm x 2500 mm (approx. 4ft x 8ft) work area, which allows it to process standard-sized sheets of plywood, MDF, or plastics in a single setup.

CNC 1325 Pro Engraving Machine 2.2KW CNC Router Woodworking Machine Automatic Specifications

Parameter Specification
Model 1325 Pro / CNC 1325
X / Y Axis Working Area 1300 mm x 2500 mm (4 x 8 feet)
Z Axis Travel Distance ~200 mm

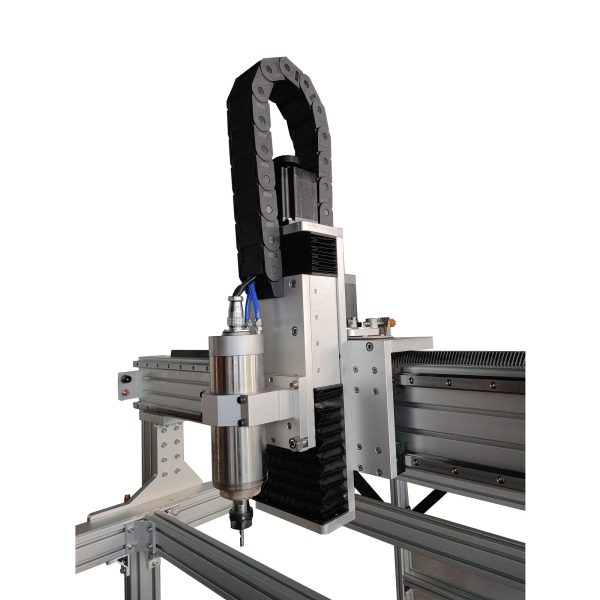

Spindle Power 2.2 kW Variable Frequency Spindle
Spindle Speed 0 – 24,000 RPM
Cooling Method Water-cooled (highly efficient for continuous work)
Drive Motors High-torque 86 Stepper Motors (or optional Servo drivers)
X/Y Axis Transmission Helical Gear Rack and Pinion Drive + Linear Guide Rails
Z Axis Transmission TBI High-Precision Ball Screw + Linear Guide Rails

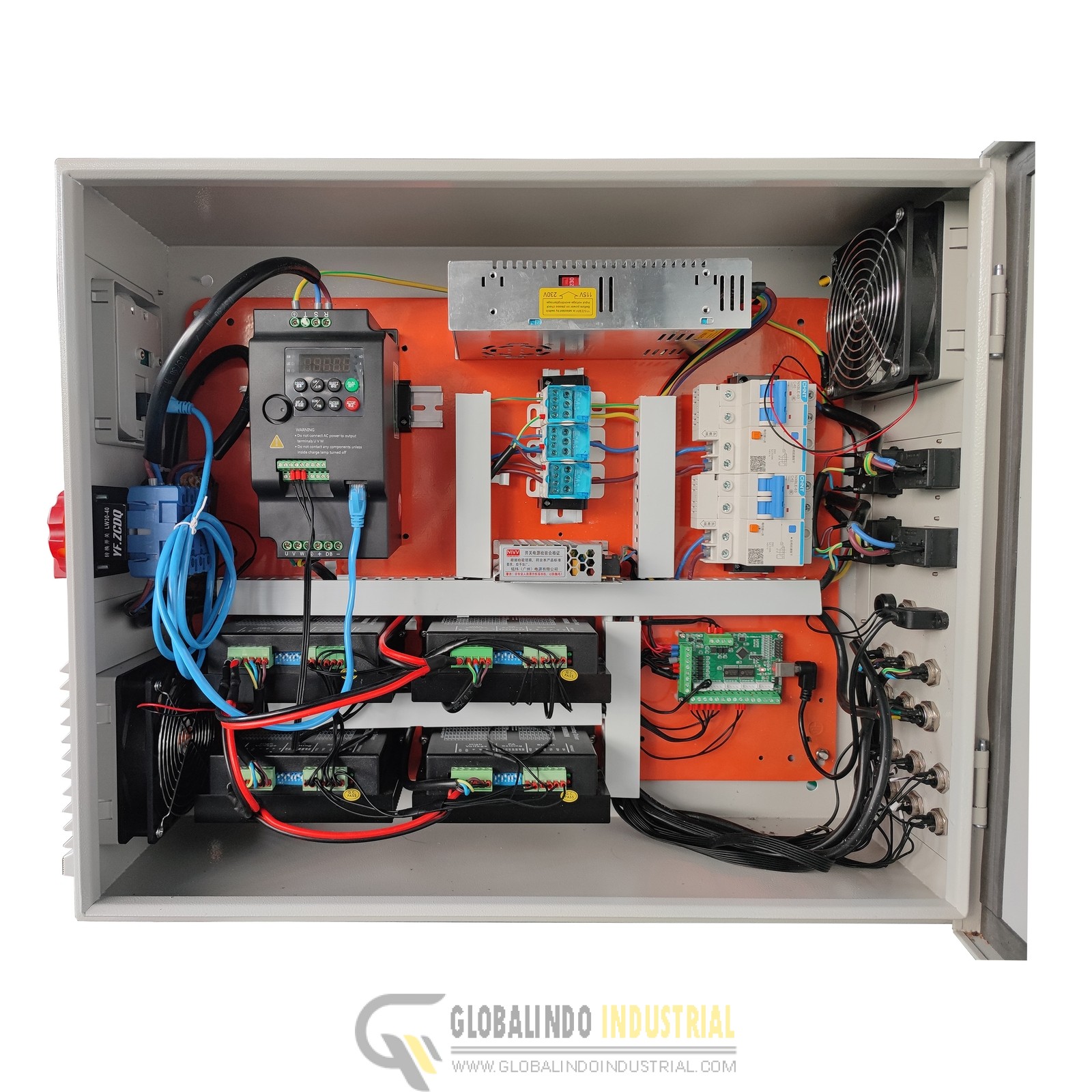

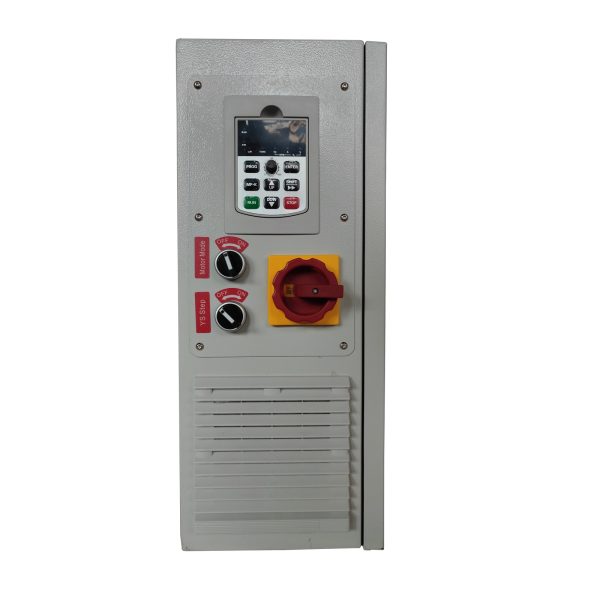

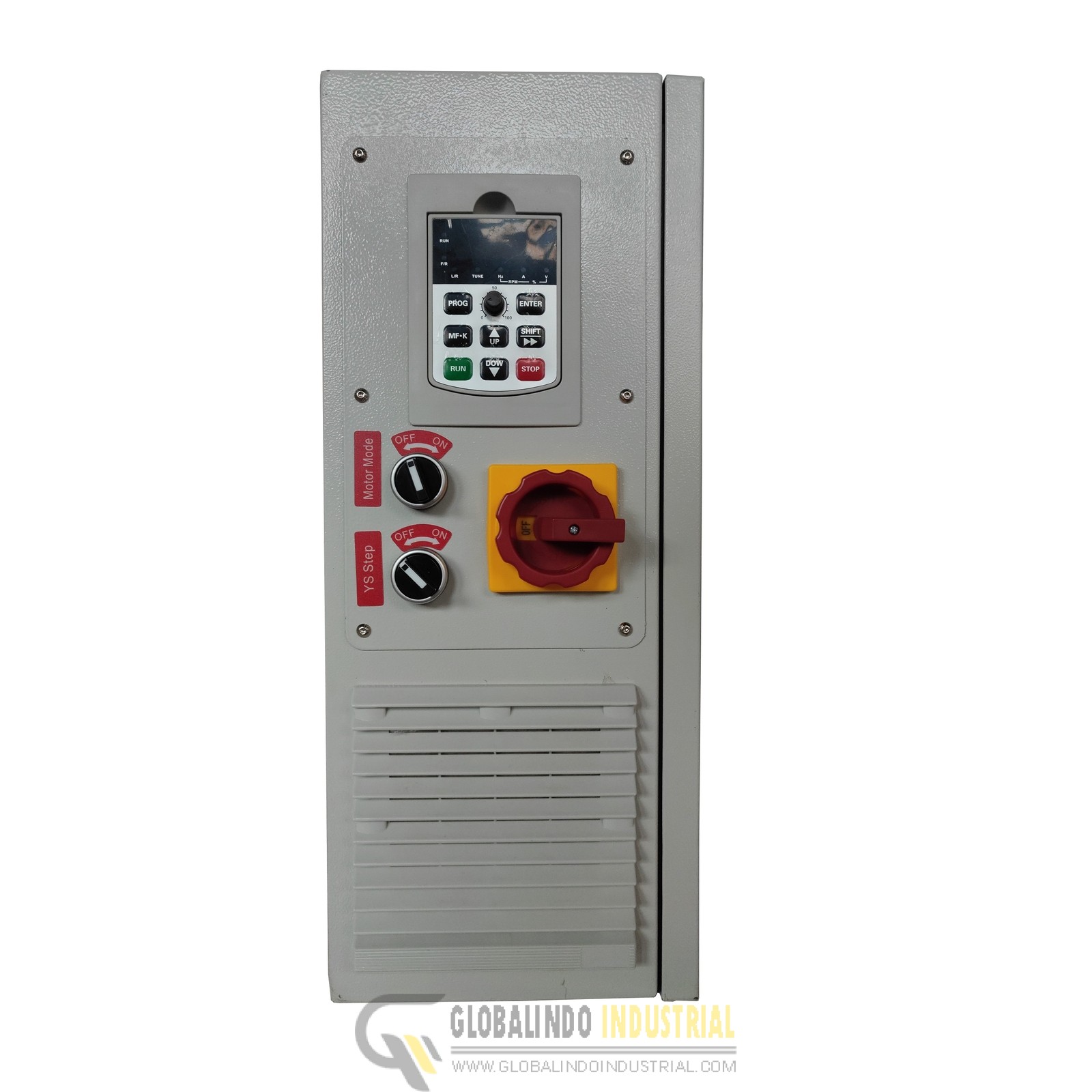

Control System Mach3, DSP Handle, or NCStudio
Operating Voltage AC 220V (Single Phase) or AC 380V (3-Phase)
Processing Speed 0 – 10,000 mm/min
Positioning Accuracy ±0.025 mm to 0.05 mm


Core Construction & Mechanics
  • Heavy-Duty Welded Frame: The machine body consists of thickened square steel tubing. It undergoes high-temperature tempering to eliminate structural stress, ensuring vibration-free operations and lifelong rigidity.
  • Dual Y-Axis System: Uses a dual-motor setup on the Y-axis to ensure stable, synchronized gantry movement without racking or misalignment during high-speed cutting.
  • Hybrid Work Table: Typically equipped with either a multi-zone Vacuum Adsorption Table (to hold down sheets without clamps) or an Aluminum T-Slot Table for mechanical fixtures.
Compatible Materials
  • Wood & Composites: Solid timber, MDF, plywood, particleboard, OSB, and balsa.
  • Plastics & Synthetics: Acrylic (Plexiglass), PVC, ABS, HDPE, Sign Board, and Nylon.
  • Soft Metals & Others: Aluminum, brass, copper, composite panels (ACP), fiberglass, and artificial stone.
Software & File Formats
  • CAD/CAM Compatibility: Fully integrates with standard industry design software including ArtCAM, Vectric VCarve Pro, Type3, Fusion 360, and CorelDraw.
  • Command Languages: Operates via universal standard G-Code (.nc, .tap) files.
