6000 LB x 30 x 125 Dallas Servo Feedline

Hot Sale 6000 LB x 30 x 125 Dallas Servo Feedline Only USD $22.600.00 Good Condition and ready to use, come with 1 year warranty. The core specifications for the 6,000 lb x 30″ x 0.125″ Dallas Servo Feed Line are detailed below. This configuration represents a mid-capacity, conventional press feed line engineered by Dallas Industries for coil handling and metal stamping.

Type: Coil Feed Lines
Model: DPR 600-30/DPS-2 1/4-7-30/DR-430
Brand: DALLAS
Stock Number: Z20038C
Serial # 20696/20697/20698
Condition: Good
Description: 6000 LB x 30″ x.125″ Dallas Servo Feedline

Uncoiler: 6000LB x 30″ Motorized Uncoiler
Model: DPR-600-30LH
Serial Number: 20696
Mandrel Length: 30″
ID Capacity: 16″ -21″
OD Capacity: 60″
Expansion: Hydraulic
Motorized: yes
Straightener: 30″ x .045″ Dallas Straightener
Model: DPS-2 1/4-7-30
Serial Number: 20697
Maximum Width Capacity: 30″
Thickness Capacity: .045″ 230″ /.125″ 12″
Rolls: 7
Pinch Rolls: entry and Exit

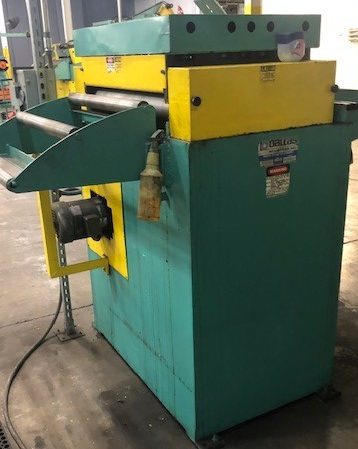

Feeder: 30″ x .125″ Dallas Servo Feeder
Model: DR-430
Serial Number: 20698
Maximum Width Capacity: 30″
Thickness Capacity: .125″ @ 30″ / .250″ @12″
Pilot Release: yes
Type Of Control: Dallas Smart Controller
Feed Lengths: 0-999.99

• Model / Series: Typically built around the Globalindo Industrial DPR-600-30 series.
• Weight Capacity: 6,000 lbs maximum coil weight.
• Maximum Width Capacity: 30 inches.
• Mandrel Length: 30 inches.
• Inside Diameter (I.D.) Range: 16″ to 21″ (utilizes hydraulic expansion to grip the core).
• Outside Diameter (O.D.) Capacity: Up to 60 inches maximum.
• Drive System: Motorized loop-control with variable-speed AC drive.

• Model / Series: Typically pairs with the DPS-2 1/4-7-30 model (or similar 7-roll configuration).
• Straightening Rolls: 7 precision rolls (typically 2.25-inch diameter rolls).
• Width Capacity: 30 inches maximum.
• Thickness Capacity: 0.125 inches maximum thickness capacity at full 30″ width.
• Features: Entrance and exit pinch rolls, hand-crank edge guides, and loop control arm to sync speed with the feeder.

• Control System: Brushless AC servo motor coupled with a precision gearbox.
• Electronics: Typically outfitted with an Allen-Bradley platform featuring proprietary Global Industrial for smooth cam-motion sinusoidal feeding.
• Material Clamping: Dual-cylinder pneumatic pilot-release roll lift mechanism.
• Feed Accuracy: Programmable via touchscreen HMI interface, providing adjustment increments of 0.001 inches
