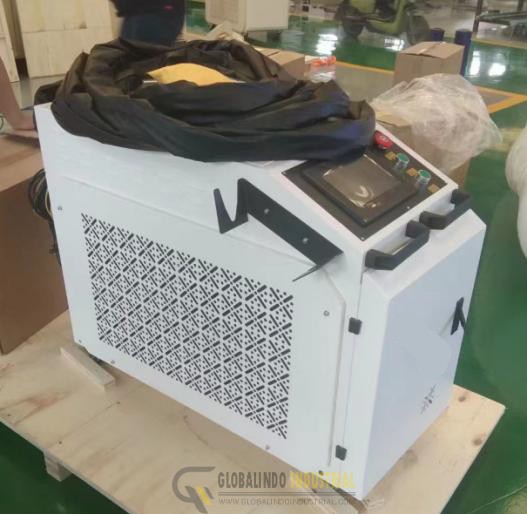

2kw Fiber Laser Welder cleaner Welds AL,SS,MS .
Condition : New
$7,800.00
Contact UsHot Sale 2kwFiber Laser Welder cleaner Welds AL,SS,MS Only USD $7.800.00 Condition New and Come With 2 Year Warranty.
Introducing our 2kw Fiber Laser Welder, a powerful and efficient tool for your welding needs. this machine is of top-quality.
Ideal for various industries such as business, industrial, CNC, metalworking, and manufacturing, it is perfect for welding and soldering equipment.
Experience reliable and seamless welding with this state-of-the-art equipment that will surely make your work easier and faster.
2kw Fiber Laser Welder cleaner Welds AL,SS,MS Material Welding Capacity (2kW Power) Specification:
A 2kW continuous wave (CW) laser source provides deep penetration and handles single-sided welding up to these typical maximum thicknesses:Â
- Stainless Steel (SS): 0.5 mm – 6.0 mm
- Mild Steel / Carbon Steel (MS): 0.5 mm – 6.0 mm (Can reach up to 7mm with wire-feed assistance)
- Aluminum (AL): 0.5 mm – 5.0 mm (Requires higher energy due to high reflectivity)Â
Core Machine Specifications
| Feature | Standard Specification |
|---|---|
| Laser Power | 2000 Watts (2kW) |
| Laser Type | Continuous Wave (CW) Fiber Laser |
| Laser Source Options | Raycus, MAX, or IPG |
| Laser Wavelength | 1080 ± 10 nm |
| Fiber Cable Length | 10 meters (Standard) |

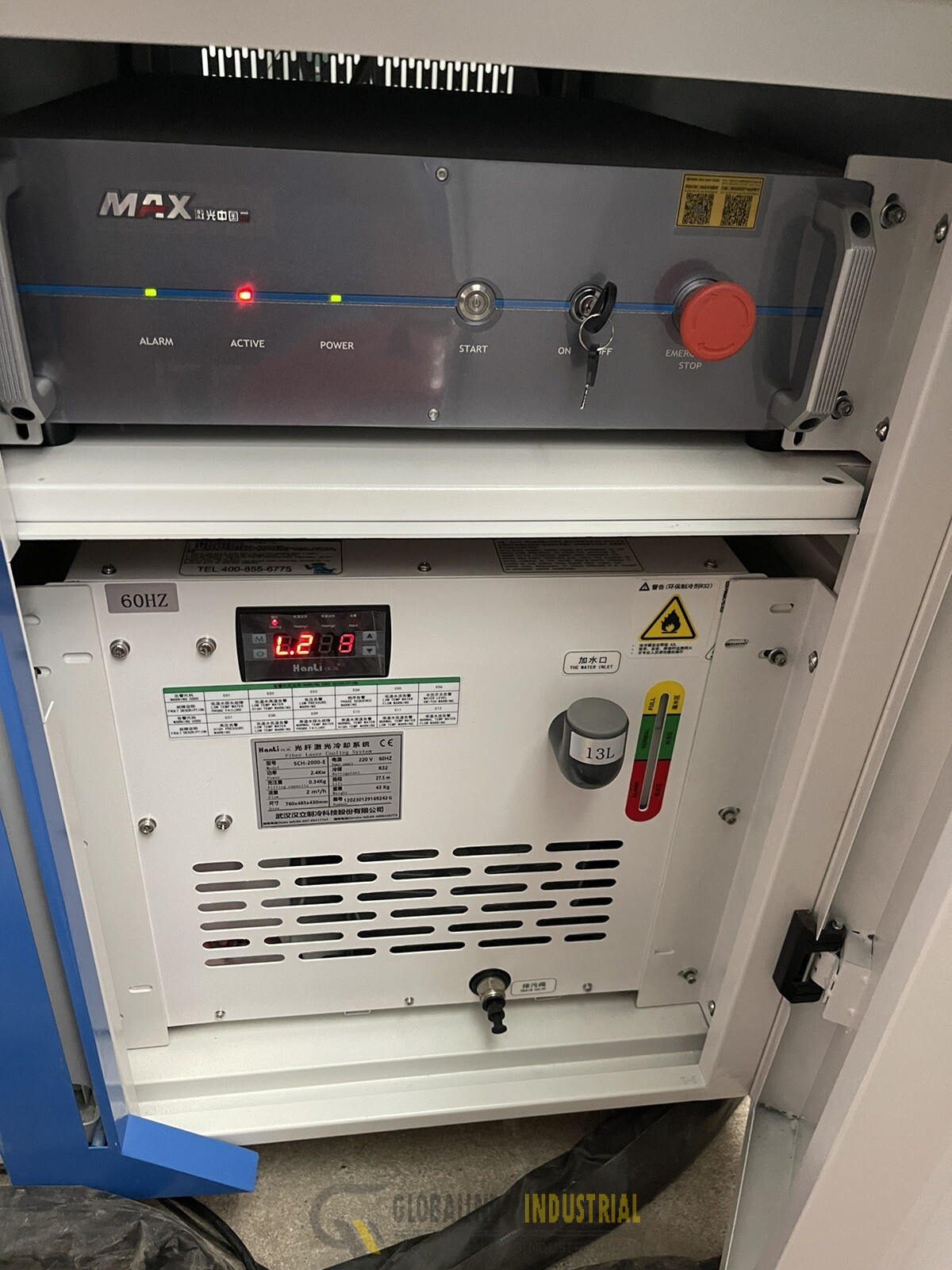

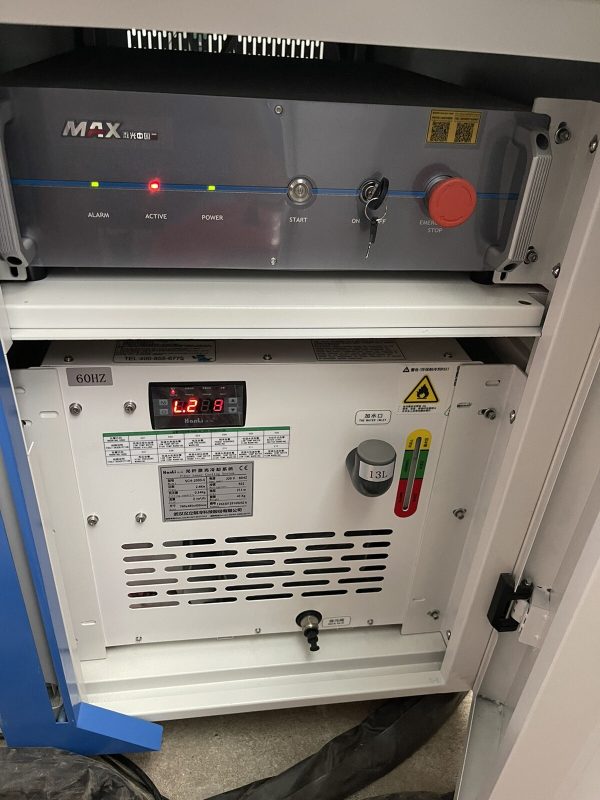

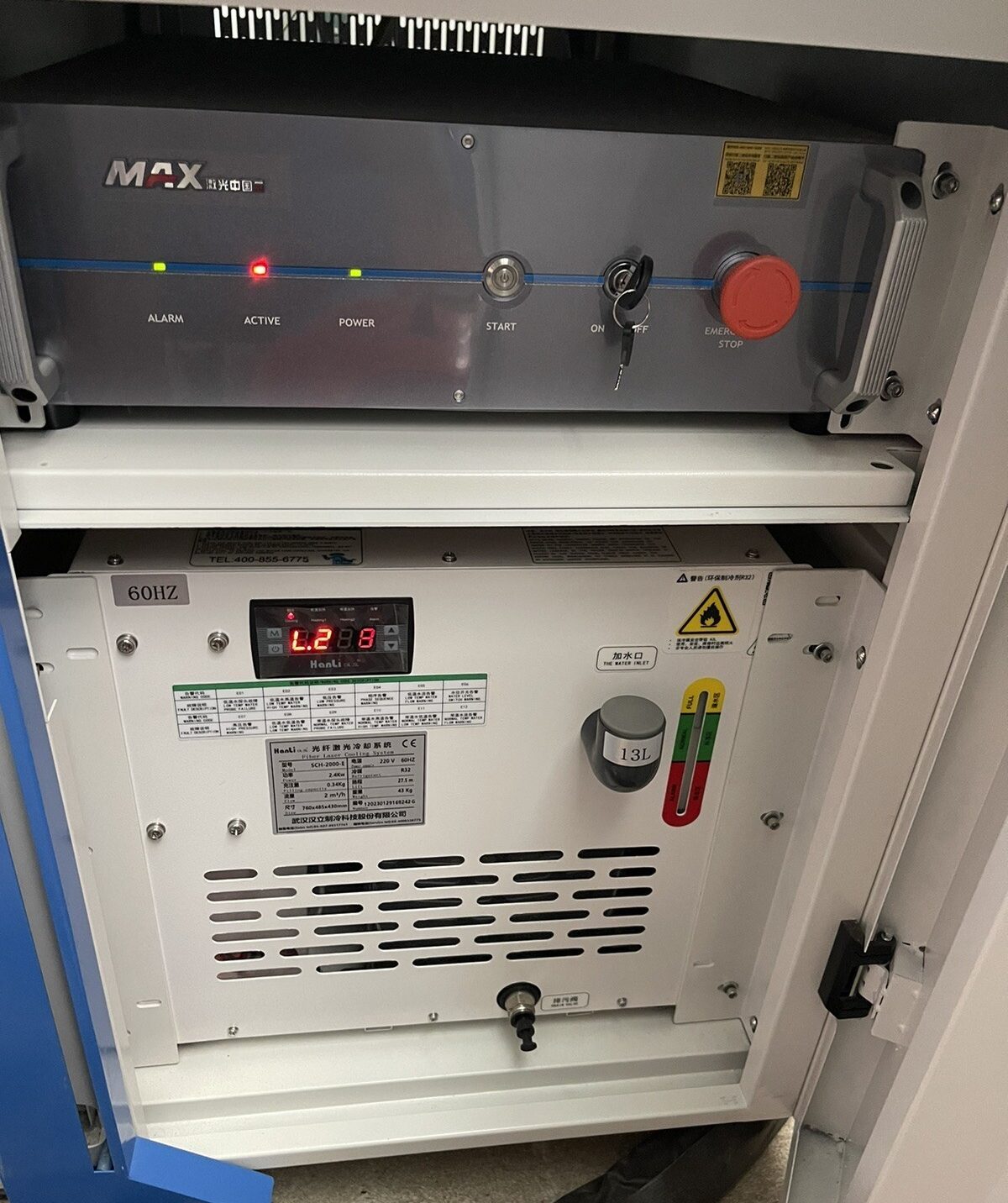

| Cooling Method | Built-in Industrial Water Chiller |
| Operating Voltage | 220V Single-Phase (1-Phase, 50/60Hz) |
| Shielding Gas | Argon (preferred for AL/SS), Nitrogen, or Compressed Air |
| Gas Pressure | 2.5 – 5.0 Bar |
Multi-Functional Head Capabilities

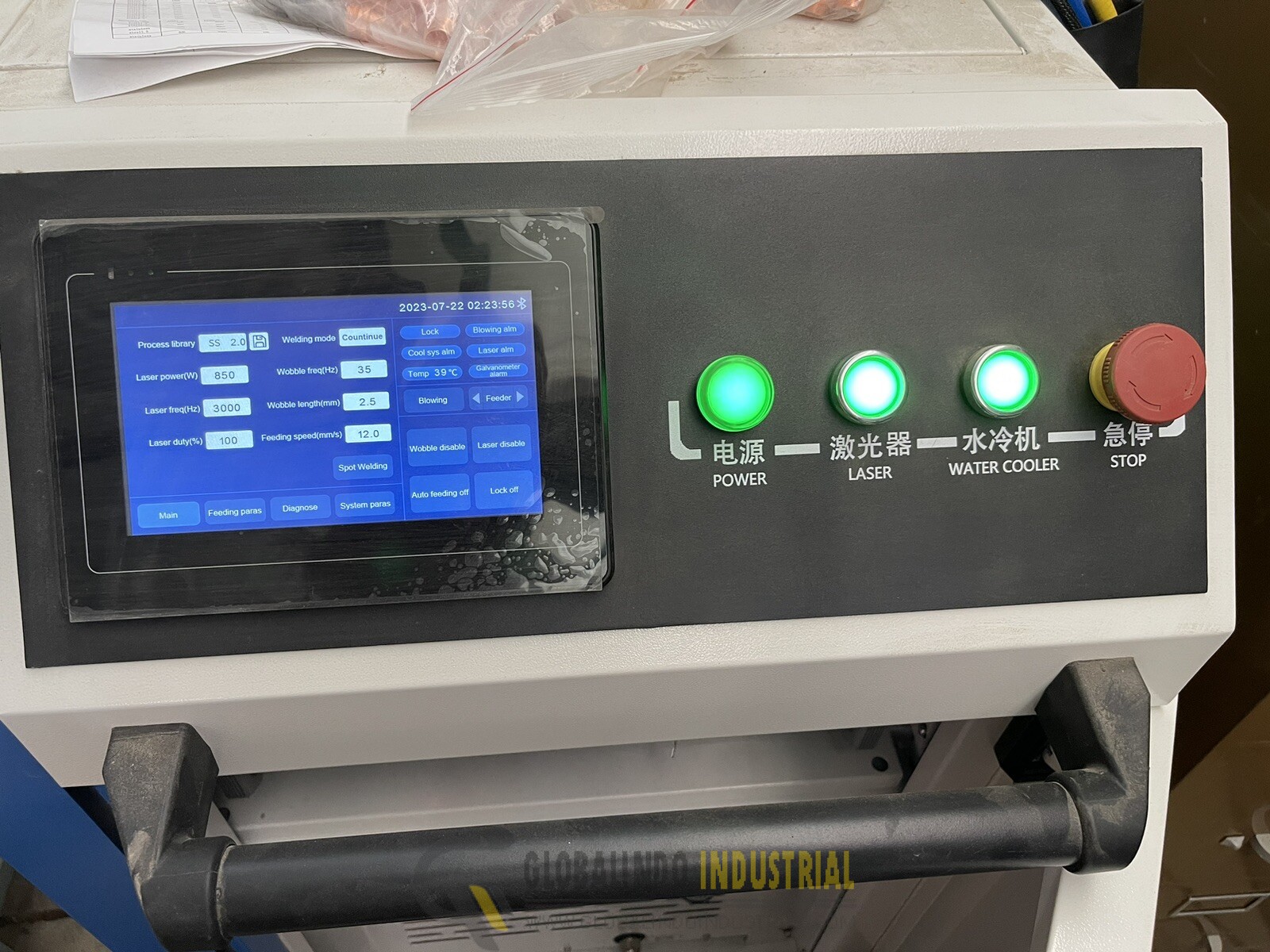

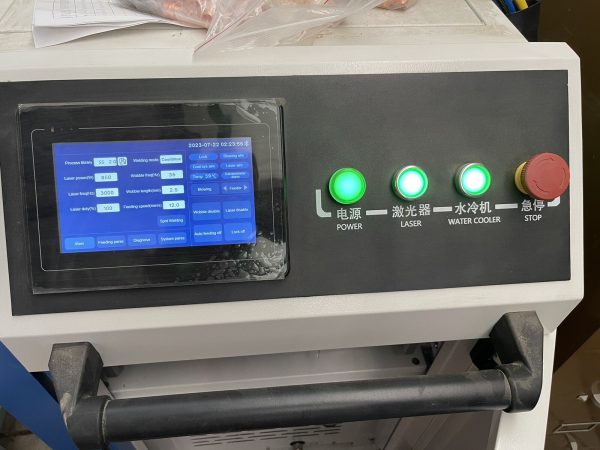

By switching the modular copper nozzle and updating the digital touchscreen interface, the system transitions between distinct operating modes:Â
- Welding Mode: Utilizes an adjustable wobble width of 0.5mm – 5.0mm to easily bridge wide gaps between parts.
- Cleaning Mode: Sweeps a wider laser beam (typically 10mm – 50mm width) to rapidly strip rust, mill scale, paint, and oxides from raw metals without chemicals.
- Cutting Mode: Can perform light, rough cutting on sheet metals up to 3.0 mm thick.Â
Integrated Accessories
- Automatic Wire Feeder: Automatically feeds matching filler metal wire (supported sizes: 0.8mm, 1.0mm, 1.2mm, 1.6mm) to fill joint gaps during thick structural welds.Â
- Dual-Safety Lock: The laser trigger will only activate when the copper nozzle makes direct electrical contact with the grounded workpiece clamp, protecting against accidental firing
