Stanley SafeBond Kit Econect EPX10340 Includes Brazing Gun Econect Unit, Charger

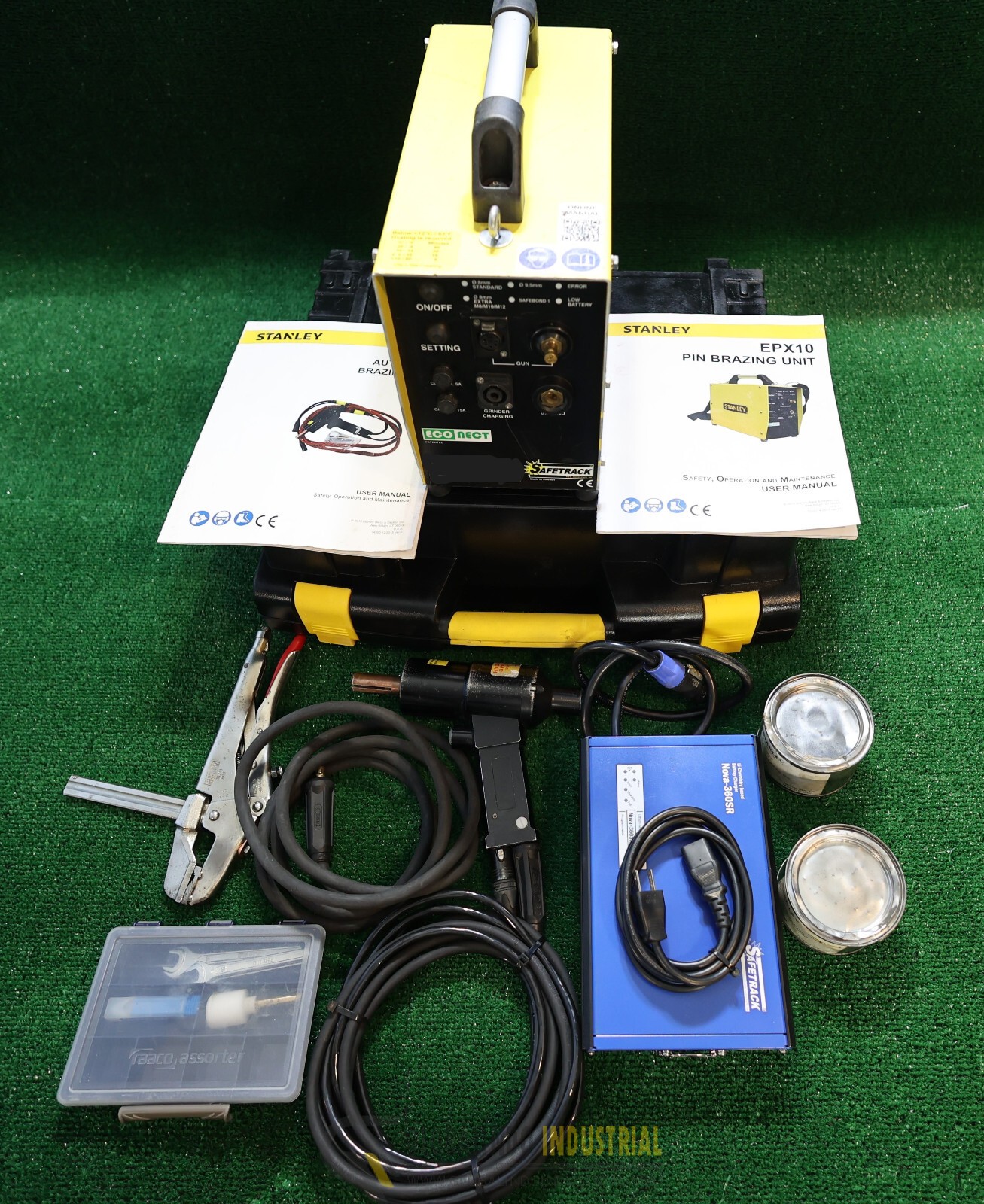

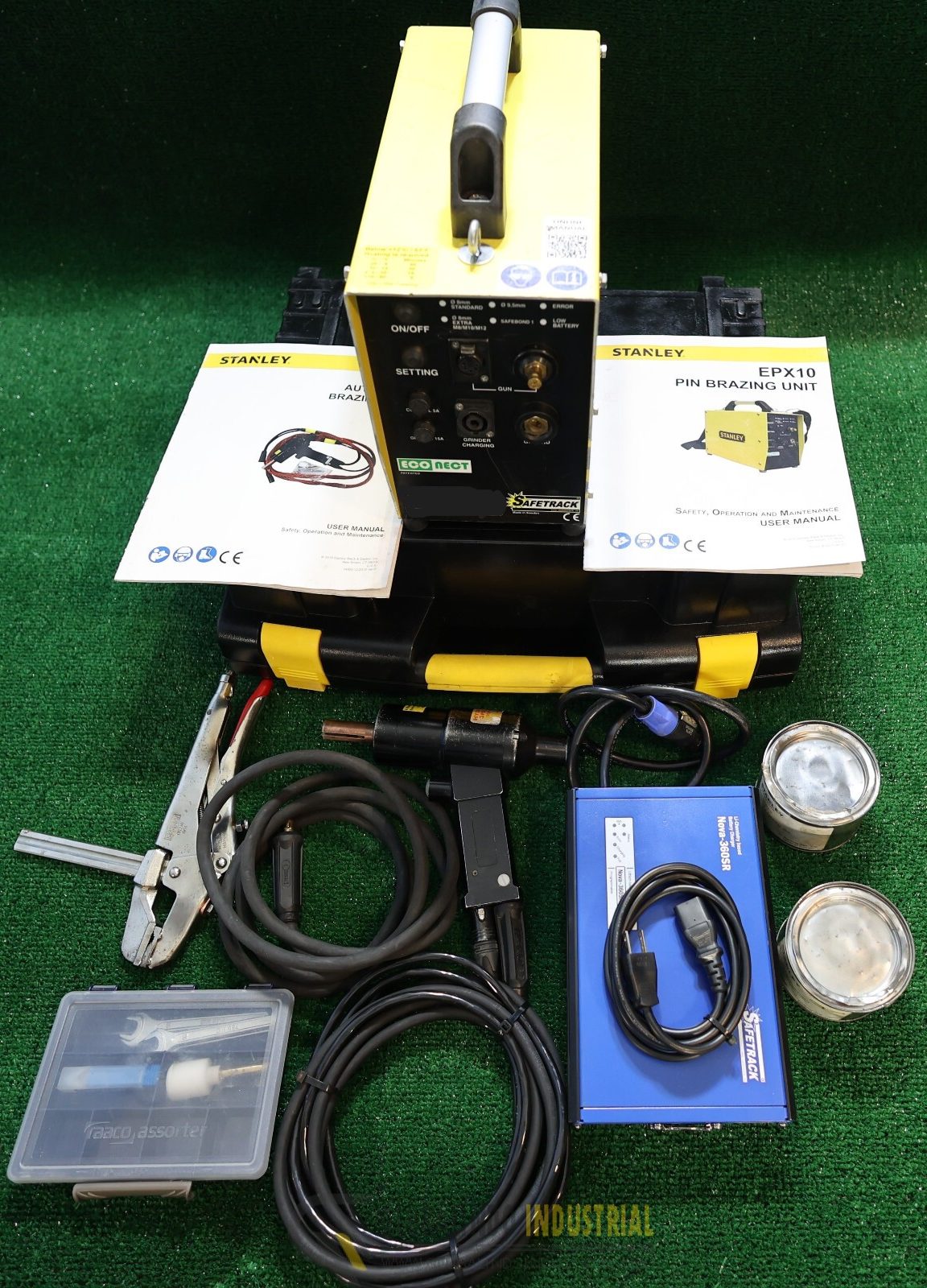

On Sale Stanley SafeBond Kit Econect EPX10340 Includes Brazing Gun Econect Unit, Charger Good condition, This is SafeBond Kit Econect (Includes: BG20600 Brazing Gun Econect Safebond,72970 Econect Unit,72972 Charger 36/110V Econect,and 72974 Carrying Case,66266 Ground Clamp Assembly (Vise Grip Style) )

Product Description
Stanley is a total solution provider for Signal and Track Connections. Pin brazing or Safebonding offers several key advantages over the conventional bolted connections. From ease of installation, less labor, lower material costs over time, increased reliability, better internal resistance, and less susceptible effects to corrosion makes this a powerful solution.

Facts About Pin Brazing: Transition resistance in the braze: only 5 micro ohms, Melting temperature of solder: 1100 deg F/600 deg C. Binding strength: 50 kp/mm2, Shear Strength:25 kp/mm2, Brazing time: 2 sec, Time to make a complete bond: Less than 2 minutes.

Shear Strength: Pin Brazing shear strength application: 3730 N/838 lb, Safebond application: 8240 N/1852 lb.

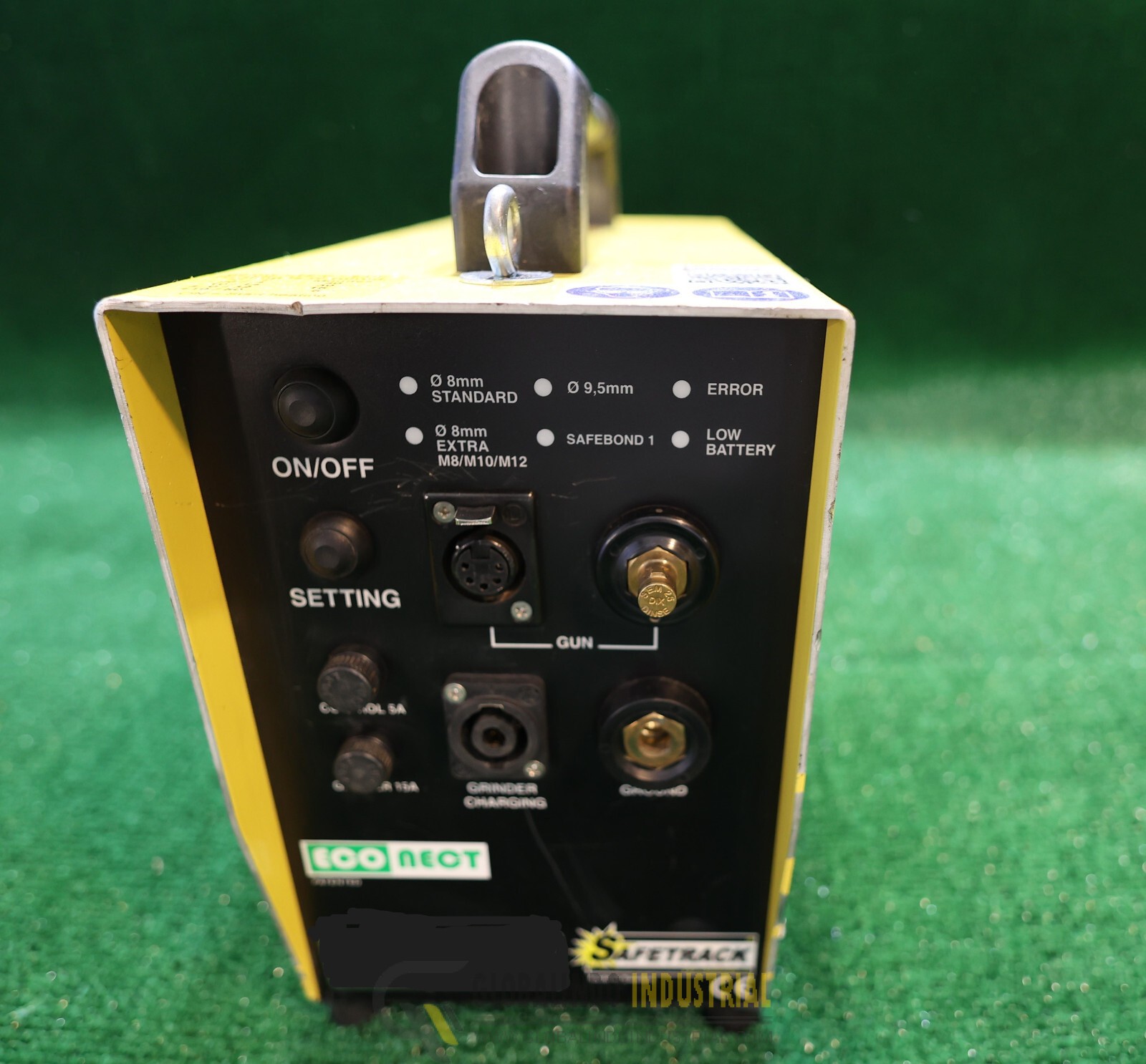

• Econect Unit (EPX10200): The central 36V DC digital battery and control unit.
• Brazing Gun Econect SafeBond (BG20600): The automated connection gun engineered specifically for the SafeBond process.
• Charger (72972): Standard 36V/110V smart charger.
• Electric Cordless Grinder Kit (HGE12151): Included for track surface preparation.
• Carbide Burr (73358): Tailored for grinding applications.
• Carrying Accessories: Heavy-duty carrying case (72974) and carrying strap (72973).

• Operating Voltage: 36 V DC
• Battery Technology: Green, lead-free Nano Li-Ion battery
• Capacity: Up to 50 brazings or 70 SafeBonds per full charge
• Recharge Time: Fully charged within 1 to 3 hours
• Operating Temperature: -4°F to 130°F (-20°C to 55°C)
• Weight: 21.6 lbs / 9.8 kg (including battery)
• Dimensions: 12.5″ L x 5.9″ W x 11″ H (320mm x 150mm x 280mm)

• Brazing Cycle Time: 2 seconds
• Total Bonding Time: Under 2 minutes per complete connection
• Transition Resistance: Merely 5 micro-ohms
• Solder Melting Temperature: 1100°F / 600°C
• SafeBond Shear Strength: 8,240 N / 1,852 lb (compared to standard pin brazing at 3,730 N)
• Binding Strength: 50 kp/mm²

• Zero Martensite: The SafeBond system eliminates local hardening (martensite formation) in the steel rail, removing the risk of rail fractures.
• Energy Efficient: Features a specialized digitized output resulting in 20% lower energy consumption than older models.
• Versatility: Accommodates all types and sizes of rail connectors for signaling, grounding, and power return lines
