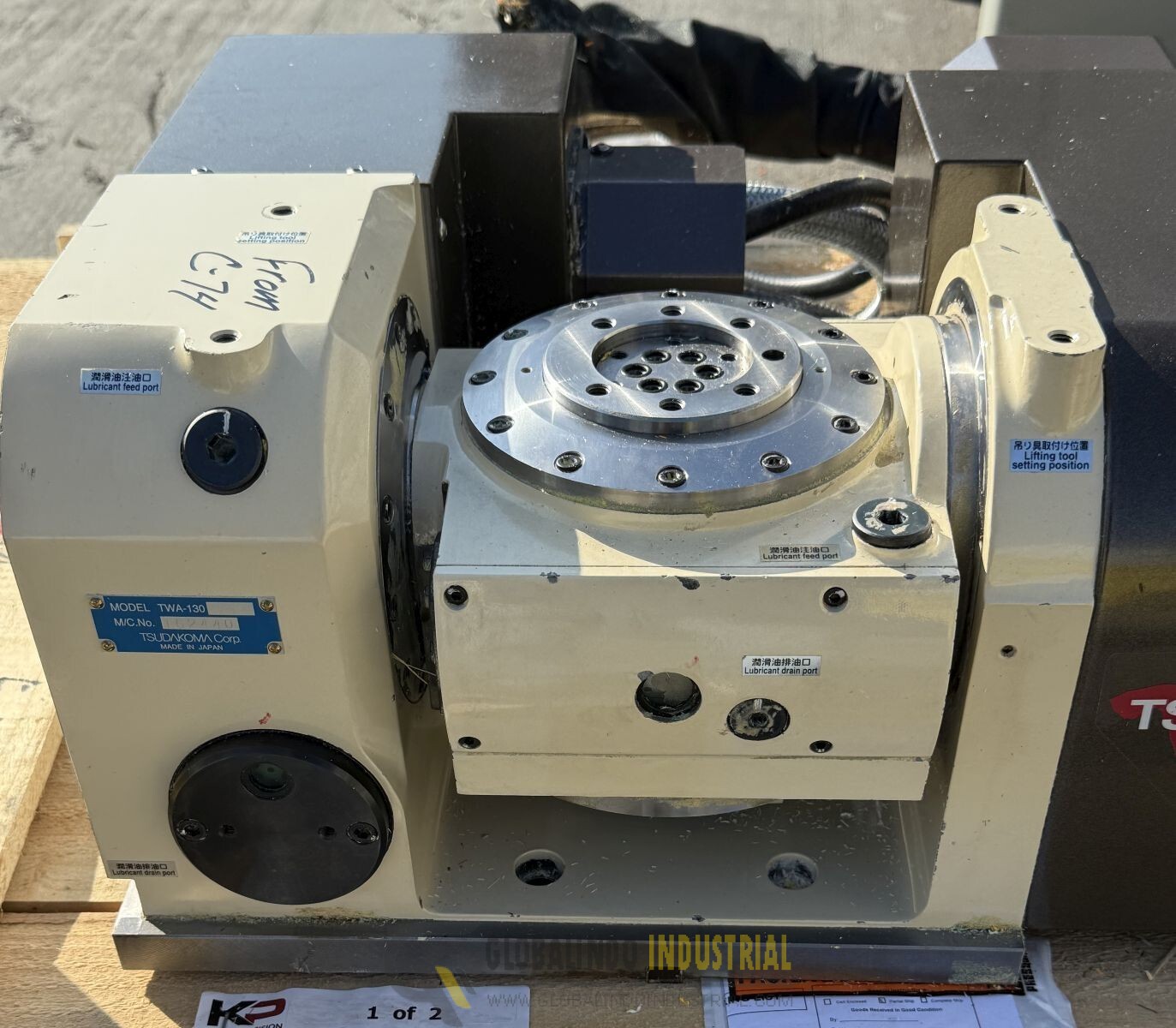

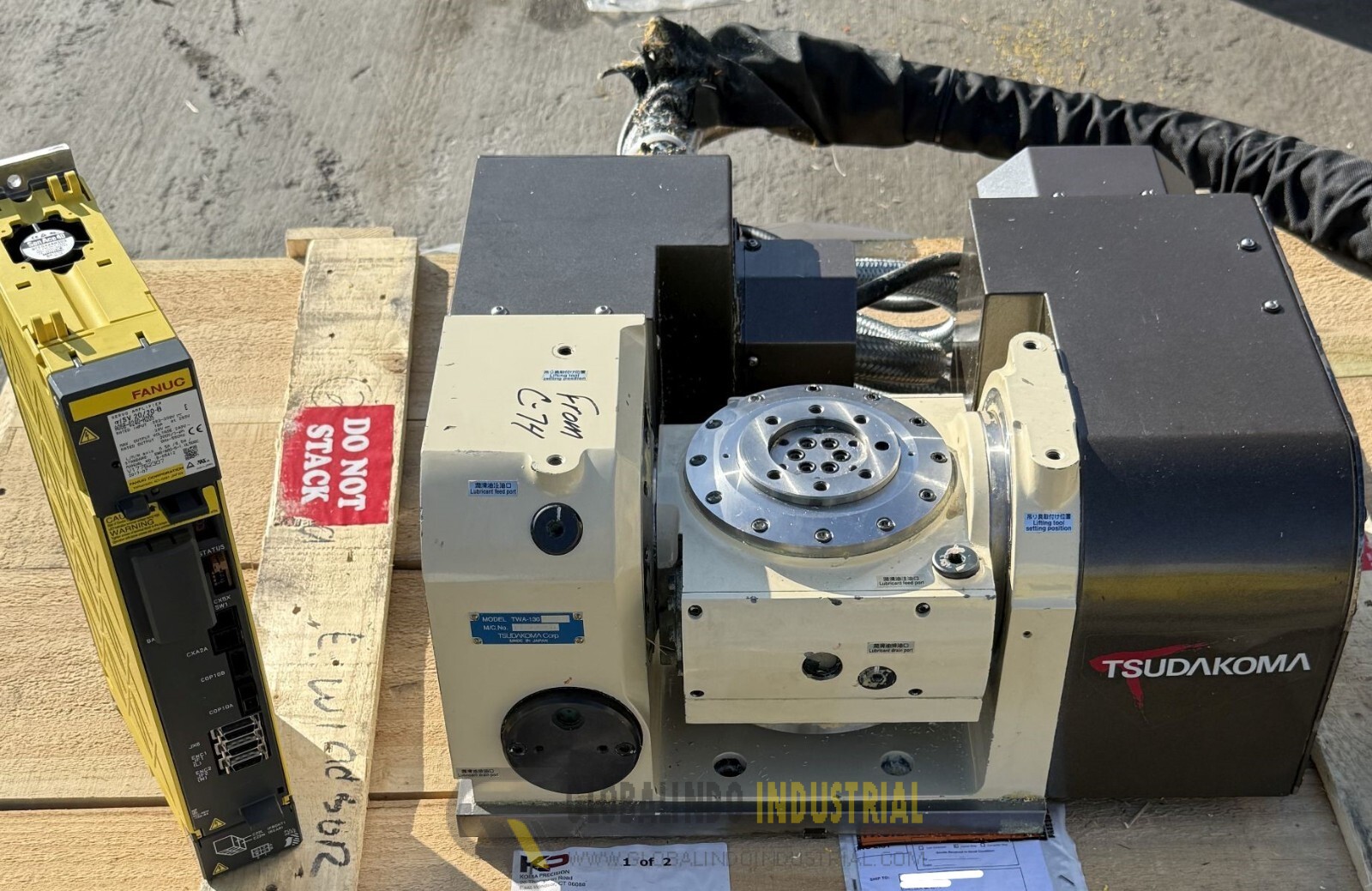

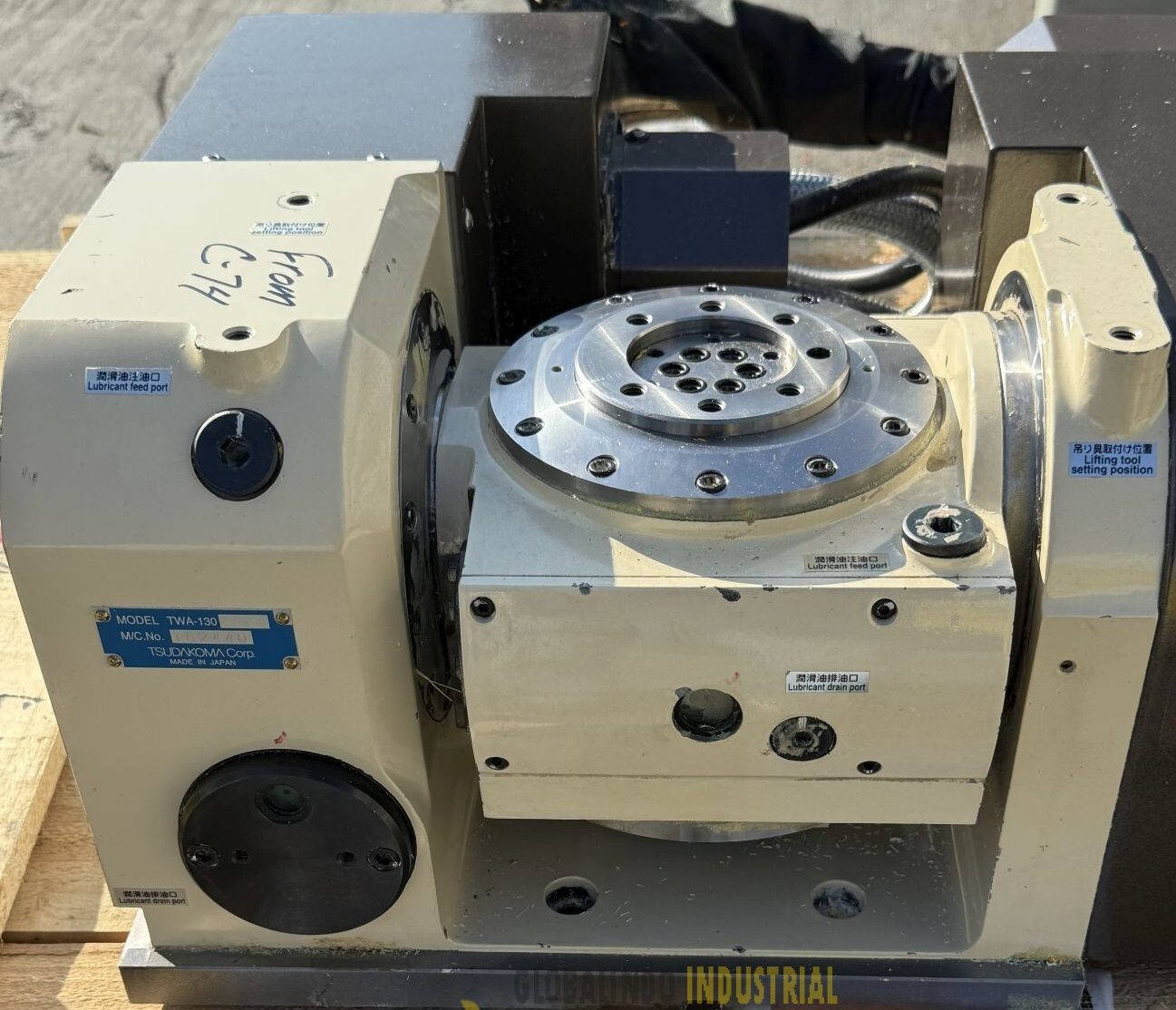

Tsudakoma TWA-130 CNC Tilting Rotary Table

Tsudakoma TWA-130 CNC Tilting Rotary Table

Specifications:
Faceplate diameter 5.3″
Indexing range 360 deg (360,000 position)
Tilt range -17/+107 deg
Index accuracy +/- 20 arc sec
Tilt accuracy +/- 22.5 arc sec
Dimensions 20.6″ x 15.1″ x 9.3″H
Weight 170 lbs

Equipped with:
Fanuc 2i Servo motors for index and tilt
Fanuc A0BB-6240-H205 aiSV 20/20B Servo amplifier board

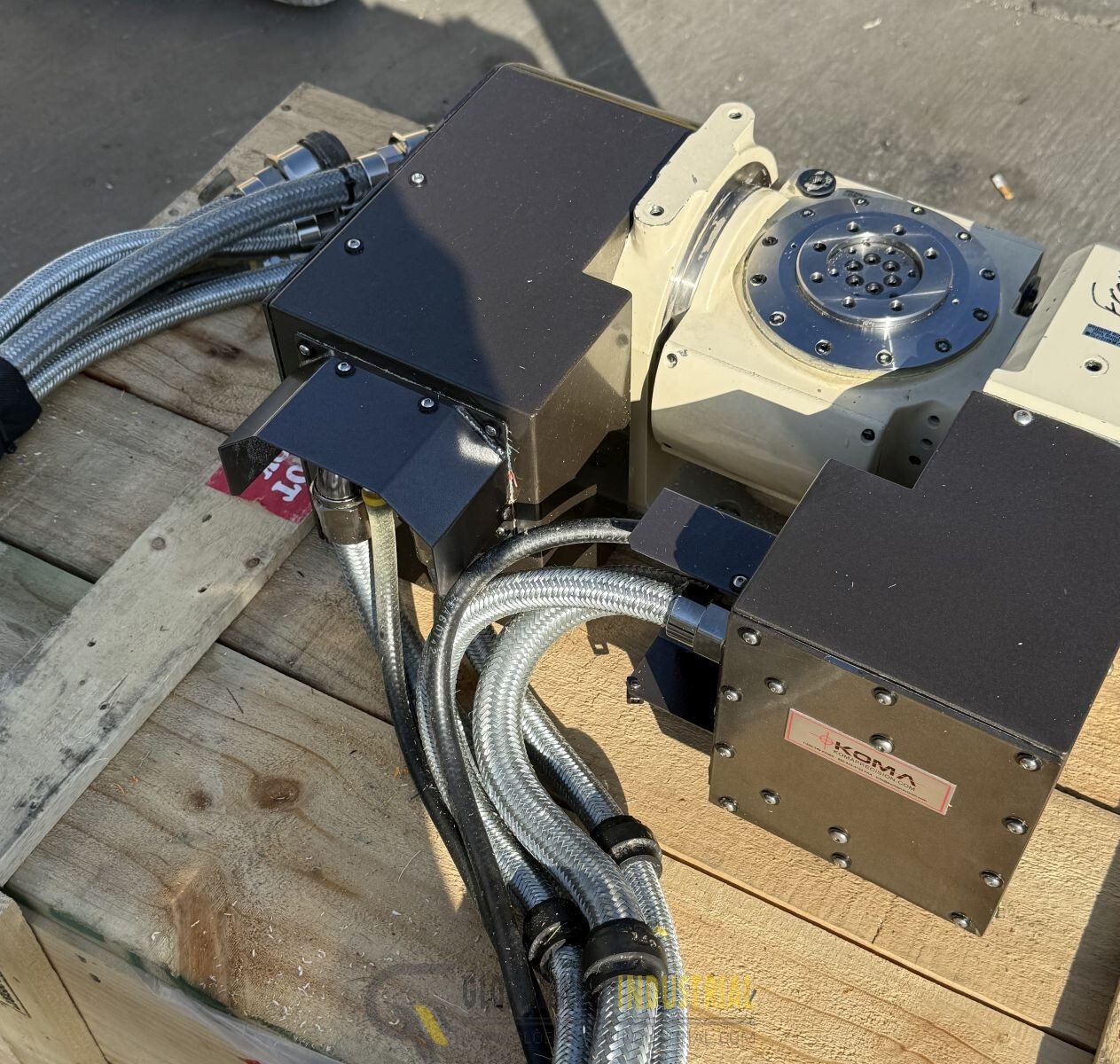

Control cables & air lines
