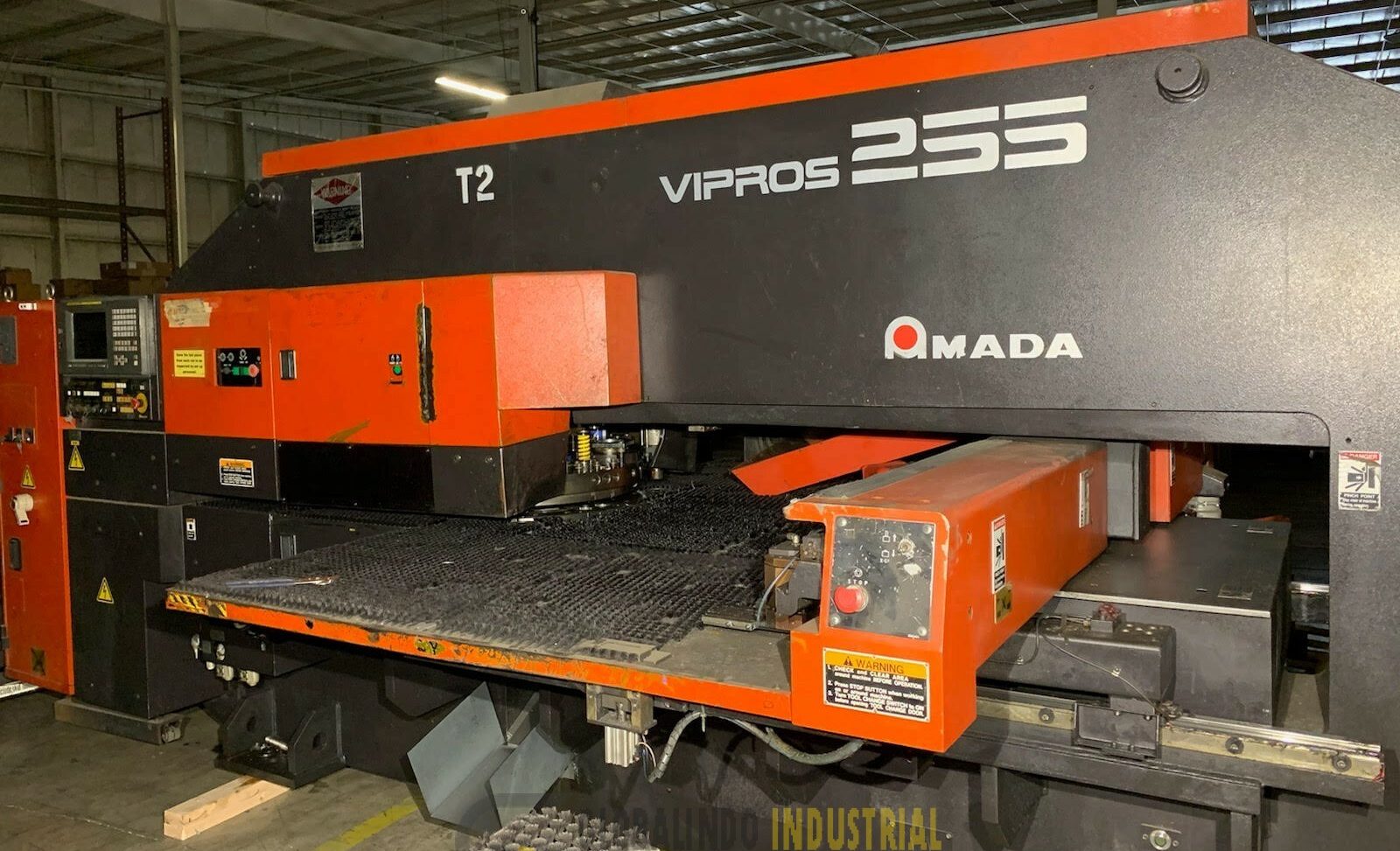

AMADA VIPROS 255 CNC TURRET PUNCH WITH AMADA MP 1225NJ Sheet Loader Set-up
Condition : Used
$20,700.00
Contact UsFor sale AMADA VIPROS 255 CNC TURRET PUNCH WITH AMADA MP 1225NJ Sheet Loader Set-up only $ 20.700. Come with 1 year warranty. AMADA VIPROS 255 CNC TURRET PUNCH WITH AMADA MP 1225NJ Sheet Loader Set-up . An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. Brand : AMADA
AMADA VIPROS 255 CNC TURRET PUNCH WITH AMADA MP 1225NJ Sheet Loader Set-up Specs
   The Vipros 255 is a high-speed, servo-controlled hydraulic punch press. It features a brush table that ensures quiet, mark-free processing of raw materials.Â
- Press Capacity: 20 metric tons (22 US tons)
- Drive System: Servo-controlled hydraulic ram
- Table Travel (X × Y): 50″ × 50″ (1270 mm × 1270 mm)
- Maximum Sheet Size: 50″ × 100″ (1270 mm × 2540 mm) with one auto-repositioning cycle
- Maximum Sheet Thickness: 0.25″ (6.35 mm) mild steel
- Maximum Workpiece Weight: 231 lbs (105 kg) at reduced speed; 136 lbs (62 kg) at maximum speed
- Punching Accuracy: ±0.0027″ (±0.07 mm)
- Hit Rate (1″ / 25.4 mm centers): 340 hits per minute
- Hit Rate (0.079″ / 2 mm pitch): Up to 1,000 hits per minute
- Turret Capacity: 31 Stations (including 3 Auto-Index stations)
- CNC Controller: Fanuc (allows complex forming tool controls)
- Machine Weight: Approx. 19,600 lbs (8,890 kg) to 20,200 lbs (9,162 kg)
2. AMADA MP-1225NJ Automatic Sheet Loader Specs
The MP-1225NJ is a fully integrated material handling system that automates raw sheet loading and finished part extraction via vacuum pads and magnetic separators.Â
- Maximum Sheet Size: 4′ × 8′ (48″ × 96″ / 1219 mm × 2438 mm)
- Minimum Sheet Size: 11.8″ × 27.5″ (300 mm × 700 mm)
- Material Thickness Range: 24 gauge to 10 gauge (Mild steel, Stainless, Aluminum)
- Load/Unload Cycle Time: 25 seconds
- Material Weight Capacity: 4,400 lbs (2,000 kg) max pallet capacity
- Material Separation Features: Edge lifters and integrated magnetic separators to prevent sheet double-loading
- Pallet Configuration: 2 pallets (one for raw stock, one for micro-jointed or full sheet finished parts)
- Power Requirements: 200V / 3-Phase, 10 KVA capacity (independent of the punch press)
- Air Consumption: 75 PSI, 31.8 CFM
- Loader Weight: Approx. 11,250 lbs (5,100 kg)Â
3. Footprint & Set-Up Requirements
   Integrating the turret punch with the sheet loader requires substantial floor space due to the dynamic movement of the loader arm and the worksheet travel area.
- Vipros 255 Footprint: Approx. 198″ L × 100″ W × 85″ H
- MP-1225NJ Footprint: 180″ L × 140″ W × 90″ H
- Combined Operating Space: A combined clearance of at least 22 feet wide by 18 feet deep is typical to safely accommodate the raw material staging carts, maintenance access, and the X-Y sheet positioning axis.
- Foundation: Heavy-duty, vibration-isolated concrete pad (minimum 6″ thickness recommended depending on soil conditions)
