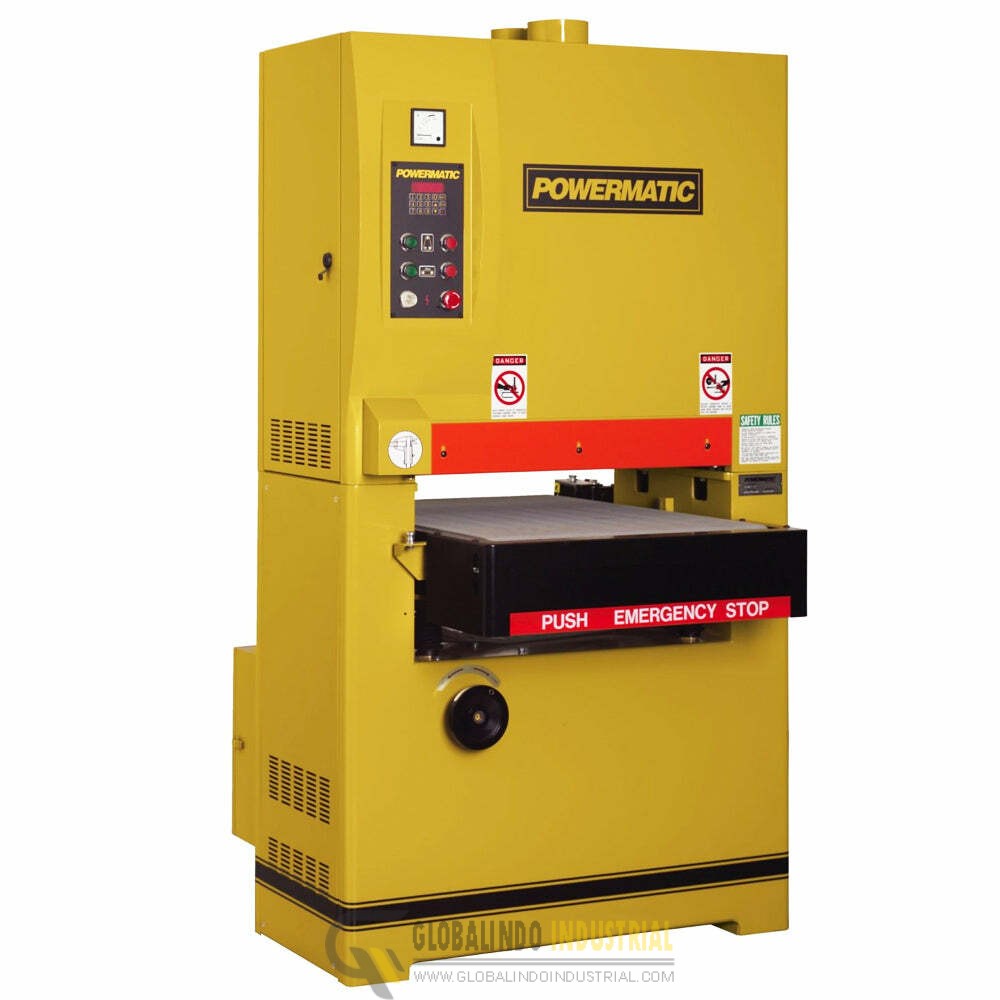

Powermatic 1790825 15-Hp 230460V 25 Wide Belt Variable Speed Sander

Powermatic 1790825 15-Hp 230460V 25 Wide Belt Variable Speed Sander

Features
Centralized controls allow you to access all the needed buttons on one simple panel

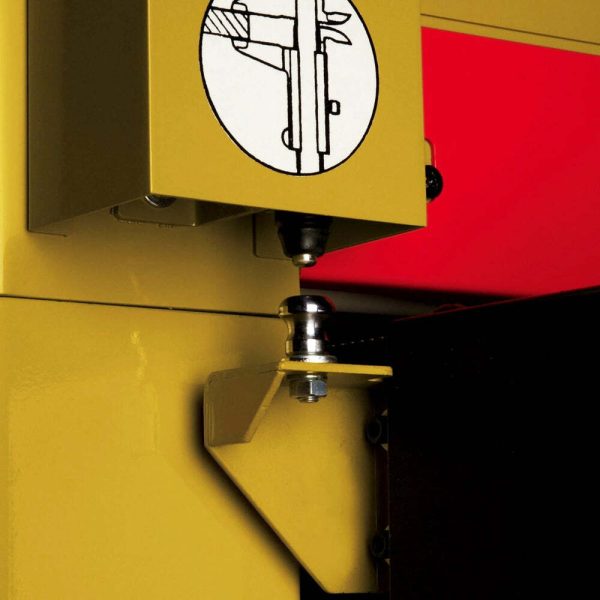

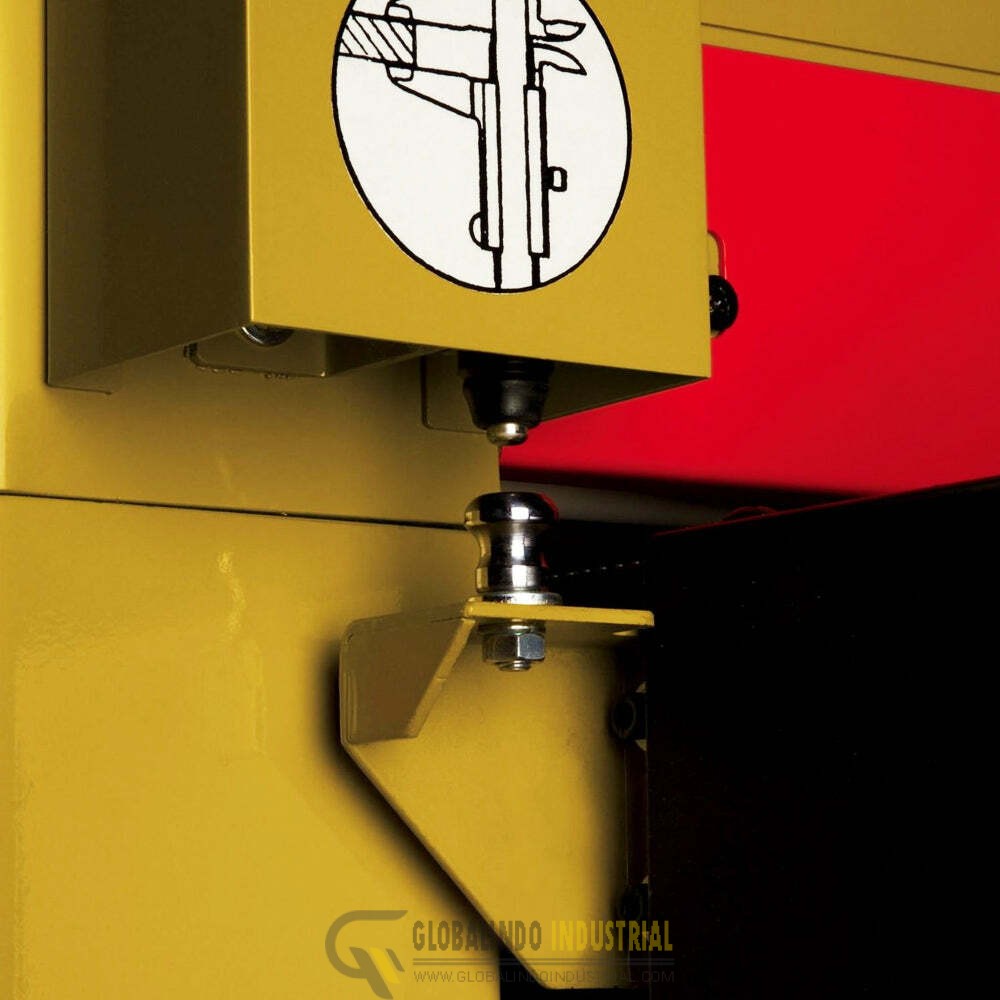

The auto thicknesser will capture the piece of wood to give the user the exact starting thickness
Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece
The disc brake slows the machine quickly and will activate immediately to stop machine in an emergency

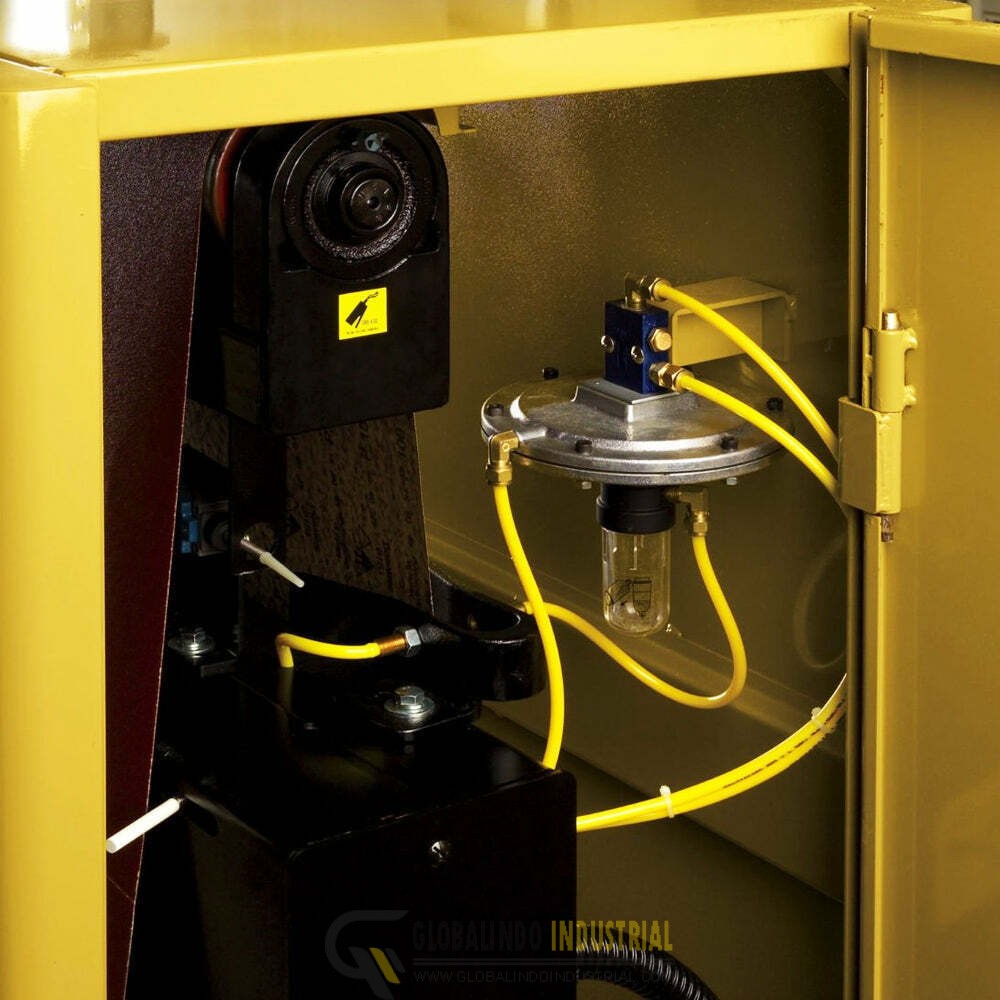

The electric eye system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece
The three motor system allows for maximum horsepower to independently power the drive drums, the variable speed feed belt, and the feed table
460V operation requires two additional overload relays, parts WB25-812A and WB25-814A

What?s in The Box
WB-25, 25″ Wide Belt Sander, 15HP 3PH 230/460V, Vari Speed, Dro
2 sanding belts, 100 and 180 grit
Graphite platen
Tool box
Owner’s Manual

Model : 1790825
UPC : 662755878763
Style (Type) : Wide Belt
Maximum Board Width (In.) : 25 ”
Maximum Board Thickness (In.) : 6
Feed Rate (FPM) : 15 – 49
Sanding Belt Speed (FPM) : 2,625
Sanding Belt Size (In.) : 25 x 75
Table Height from Floor (In.) : 31-3/8 – 37-3/8
Dust Collection Minimum CFM Required (CFM) : 800
Dust Port Outside Diameter (In.) : 5
Feed Motor Power (HP) : 1
Table Lift Motor Power : 1/4
Motor Power (HP) : 15
Motor Phase : 3
Motor Voltage (V.) : 230, 460
Prewired Voltage (V.) : 230
