2000 Watt Amada FOL 3015AJ Fiber Laser, 2012 – 5′ x 10′ Tables

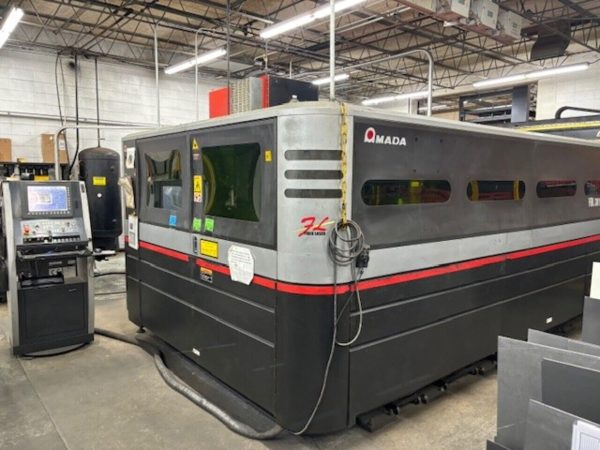

Hot Sale 2000 Watt Amada FOL 3015AJ Fiber Laser, 2012 – 5′ x 10′ Tables Only USD $55.000.00 Good condition and ready to use, come with 1 year warranty. The 2012 Amada FOL 3015AJ is a 2000-watt CNC fiber laser cutting system featuring dual 5′ x 10′ shuttle tables. It delivers high wall-plug efficiency and linear drive precision for processing various sheet metal thicknesses in industrial manufacturing environments.

SPECIFICATIONS:
Condition: used
Year: 2012
Resonator wattage: 2000 Watt
Max sheet size: 5’x10′
Table height: 37″
Max workpiece weight: 1,653 lbs.
X-axis: 120.86″
Y-axis: 61.02″
Z-axis: 3.93″
Max. material thickness: .875″
Positioning speed:X-9,448″ /Y-9.448″ / Z-4,274″
X,Y traverse speed: 13,386″/min
Drive feed method x/y/z:: Linear
Max acceleration: 5G
Max cutting speed: 0-9,449″/min
Weight (approx.): 31,328 lbs.
Dimensions (approx): 400″ x 118″ x 79″H

EQUIPPED WITH:
Laser Engine (Replaced Nov 2021)
Chiller Model: RKE3752AVA
Shuttle Tables
Available Spare Parts

Dust Collector & Automation Not Included
Power On Time: 86,547 Hours
Cutting Time: 27,690 Hours
