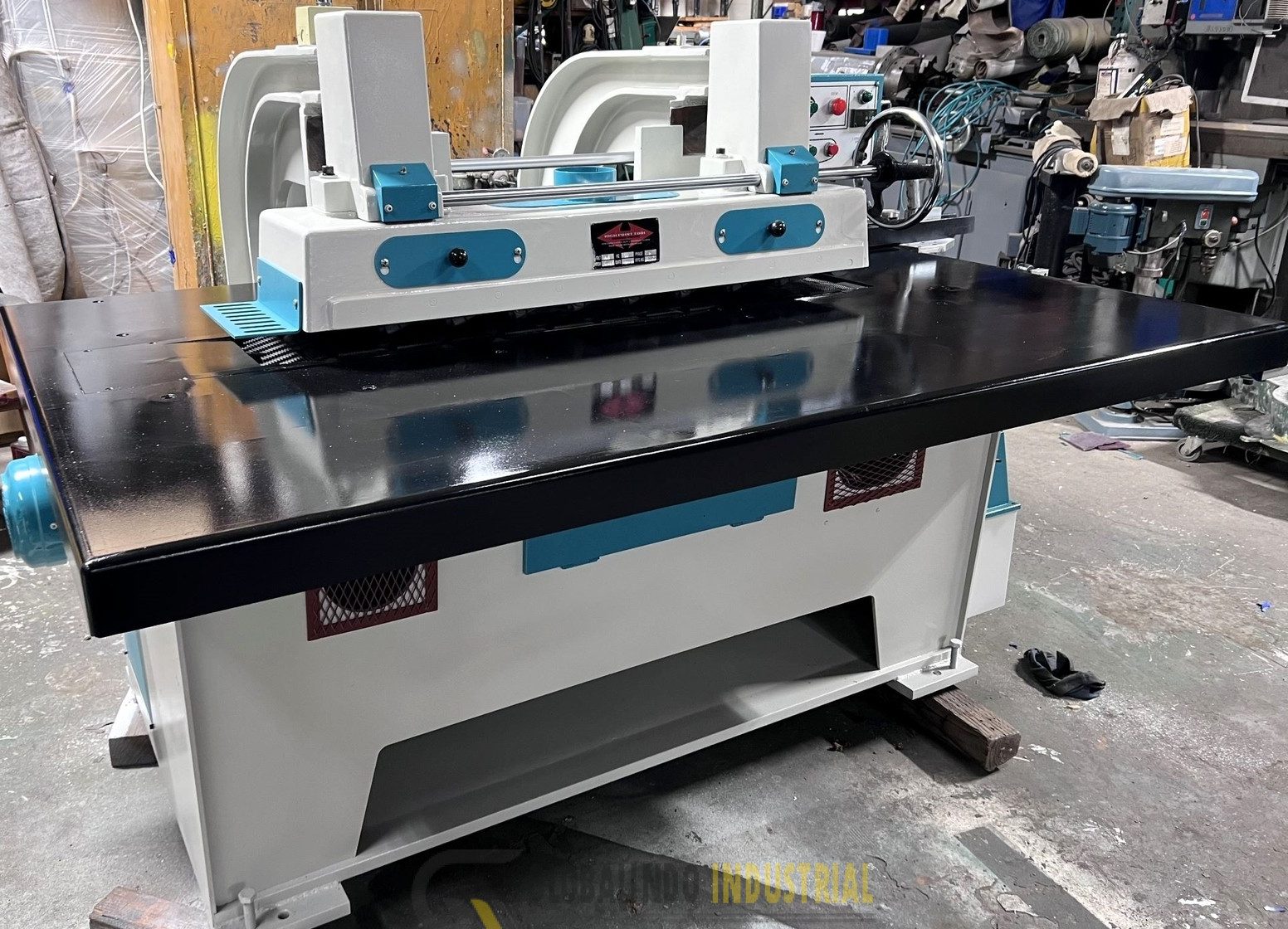

HIGH POINT TOOL JR-18T STRAIGHTLINE 18” SINGLE BOTTOM CUTTING RIP SAW

HIGH POINT TOOL JR-18T STRAIGHTLINE 18” SINGLE BOTTOM CUTTING RIP SAW

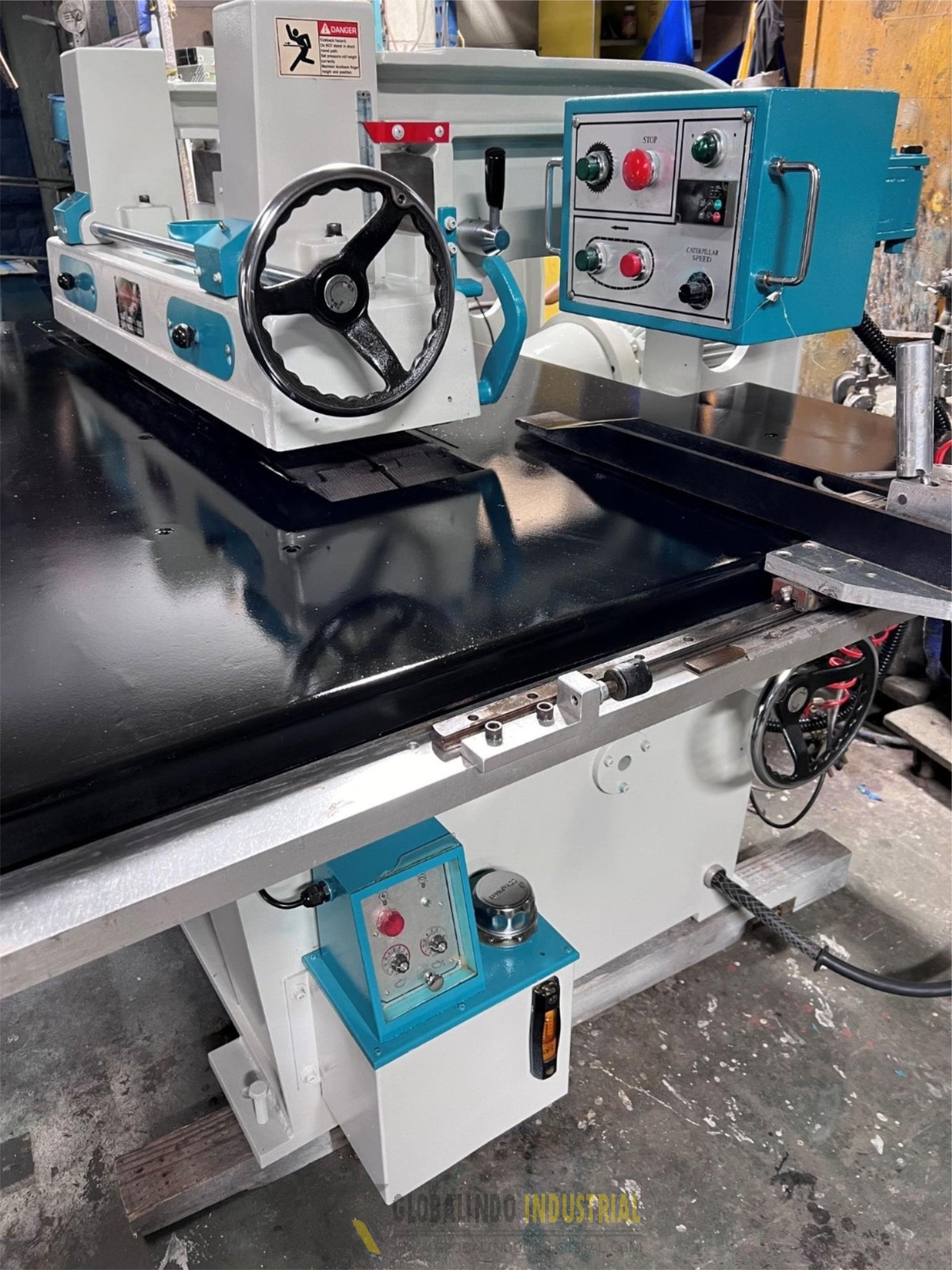

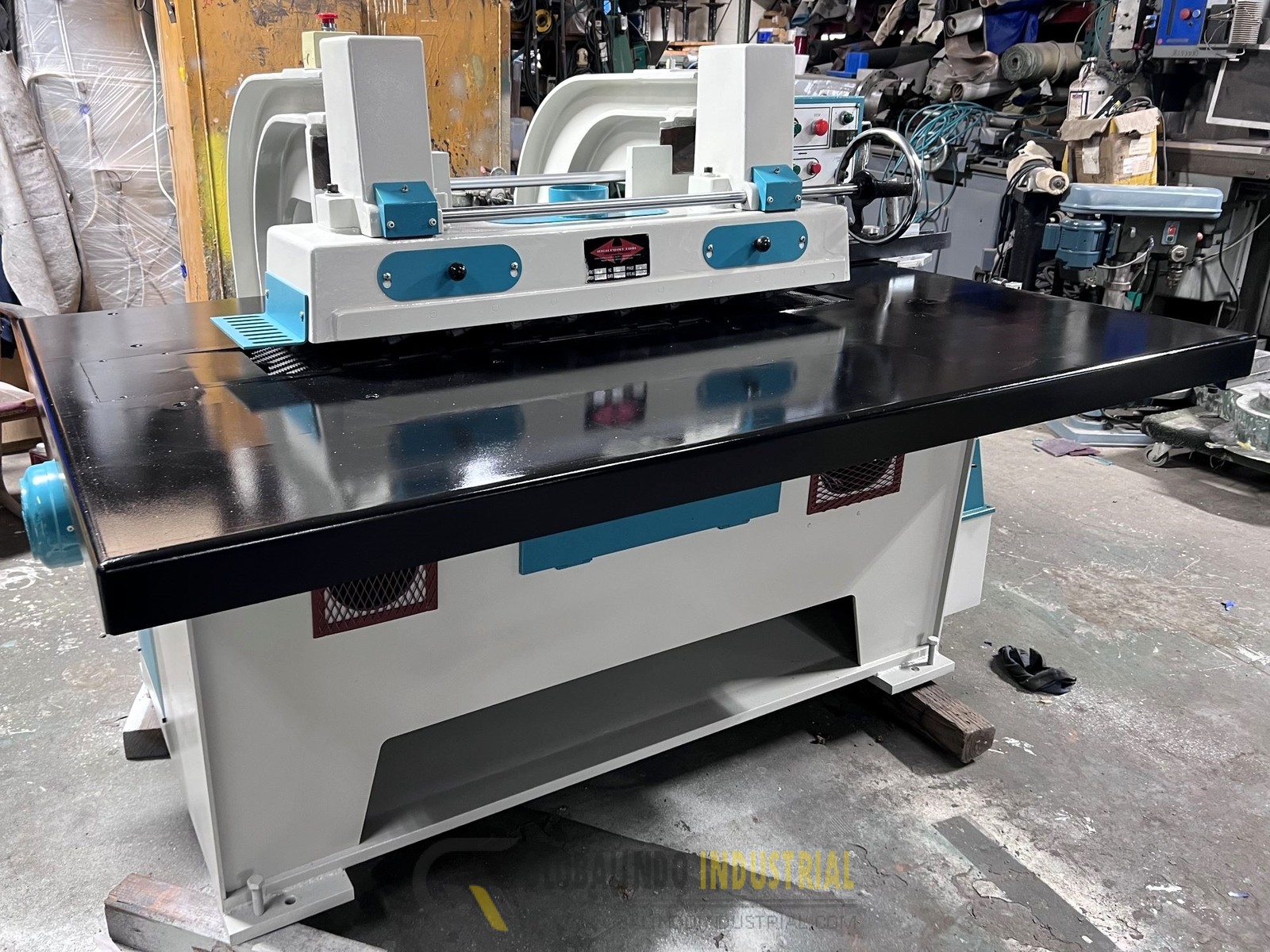

This is a Straightline Single Bottom Rip Saw in working condition.

Features
The precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
Heavy-duty industrial motor for powerful cutting capacity.
Ruggedly constructed cast iron frames for durability usage.
The variable feed speed enables the machine to meet different requirement of work.
V-way track and chain block surface are heat-treated for long wear resistance.
Automatic lubrication to V-Way track facilitates chain running smoothly.
Precision built saw head ensures accuracy for straight line rip saw operations.
Four bearing spindle mount ensuring rigidity & long life.

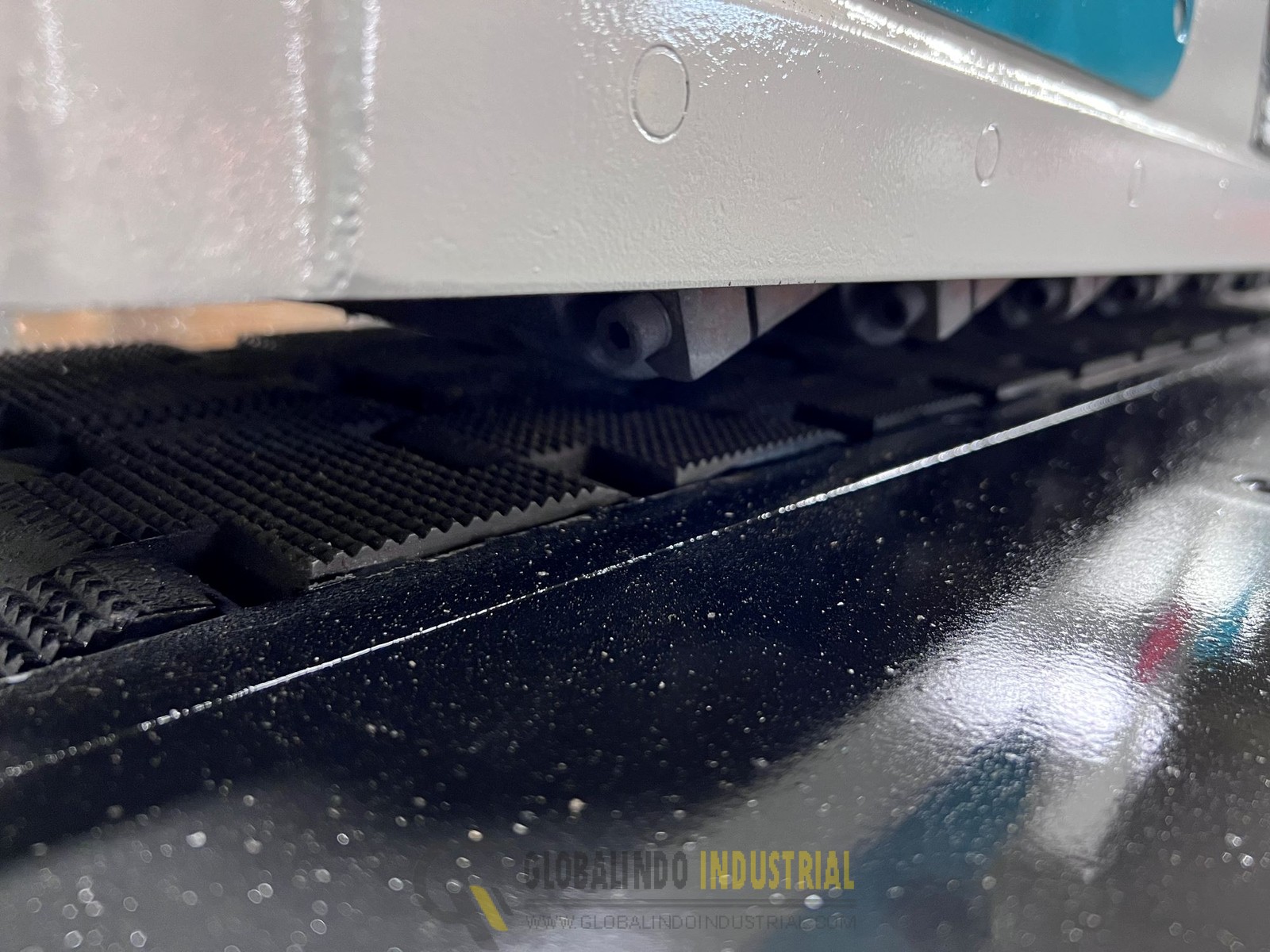

Four pressure rollers for precise cutting of large and small workpieces.
The auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil to increase the durability of the machines.

Specifications
Maximum Cutting Depth: 4-3/4″
Arbor Diameter: 2″
Max. Amount of Blades Per Spindle: 1
Saw Blade Size: 14″ ~18″
Table Dimensions: 58″ x 78″
Spindle Speed: 3600 RPM
Feeding Speed (RPM): 30 ~ 85
Throat Depth (1st Blade): 26″
Main Motor: 20 HP
Feed Motor: 3 HP
Feed Chain Width: 8-3/4″
Automatic Lubrication: YES
Minimum Workpiece Length: 8″
Exhaust Hood Diameter: 4″
Comes as shown in pictures.
