Hexagon Global Advantage 7.10.7 Bridge Style CMM, New 2014, Excellent Condition

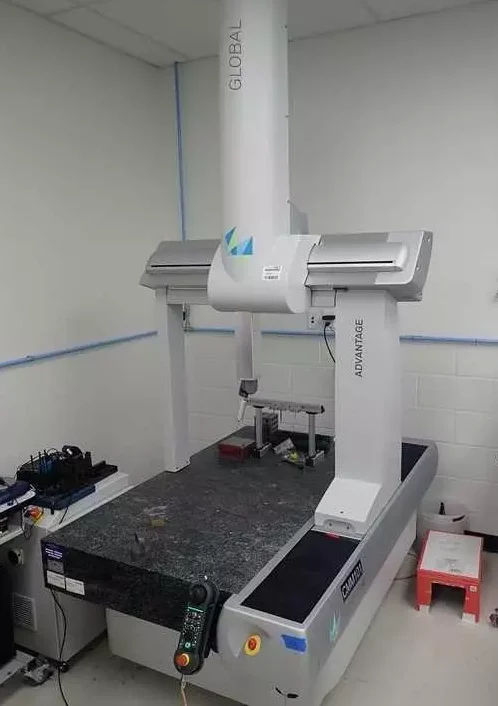

CompareHEXAGON BRIDGE STYLE COORDINATE MEASURING MACHINE
Model Global Advantage 7.10.7, S/N 0714-1470, New 2014
EQUIPPED WITH:
Hexagon Computer with Dual Monitors, Leitz LSP-X1HT Probe Head, Extra Probes, Table Mounted Probe Rack, Tesa-SM Probe Head Wrist (Swiss Made), Hexagon DC800 DCC Controller, PC-DMIS CAD++ Software, NJB001 Pendant Control, Linear Scales and Air Bearings All Axis, Auxiliary Optional Air Dryer. Was Decommissioned and Prepped for Shipment by Hexagon with a Complete Set of the Original Factory Shipping Brackets and Put onto A Custom Skid Made by Hexagon and Relocated for Resale Just 20 Minutes Away from The Original Owner Who was a Fortune 100 Non-Production Low-Hour Prototype Die Mold Shop with a Clean Room Where this Machine was Operated. This Shop was Closed Down in Its Entirety which is Why this Excellent Condition Machine is Available.
CATALOG SPECIFICATIONS:
X-Axis Measuring Range 27.56″ (700 mm)
Y-Axis Measuring Range 39.37″ (1000 mm)
Z-Axis Measuring Range 25.98″ (660 mm)
Table Size 27.56″ x 64.96″ (700mm x 1650 mm)
Max Workpiece Weight 1,980 LBS
Accuracy Microns
Operation Bridge
Probe / Sensor Type Leitz LSP-X1HT Probe Head
Probe Wrist Tesa Star-SM
Electrics 110/220/1/60
Approximate Machine Dimensions 49.21″ x 75.2″
Approximate Machine Height 107″
Approximate Machine Weight 4,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
