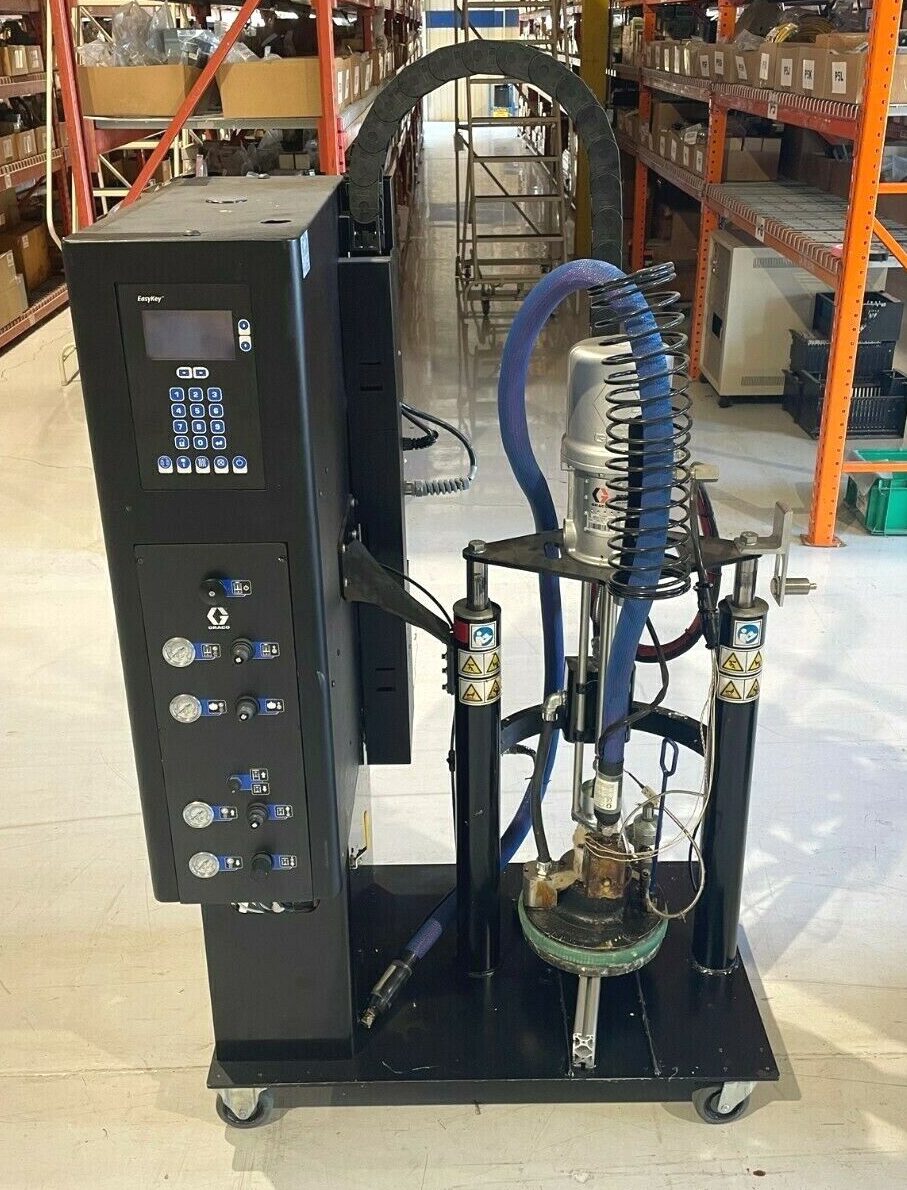

Graco Therm O Flow 20 Hot Melt Dispensing System

Graco Therm O Flow 20 Hot Melt Dispensing System Perfect condition and ready to working

$8,299.00

Description
Reviews

HOT SALE !!! Graco Therm O Flow 20 Hot Melt Dispensing System, only $ 8.299. Come with 1 year warranty. The Graco Therm-O-Flow 20 is an industrial hot melt bulk dispensing system designed specifically for unloader applications using 5-gallon (20-liter) pails. It handles a variety of hot melt sealants and thermoplastic adhesives, providing advanced temperature control to eliminate thermal overshoot. Perfect condition and ready to working. Series G10C, T440SB.

Graco Therm O Flow 20 Hot Melt Dispensing System Specifications

The overall performance metrics of the system depend on whether it is configured with a 2-Ball lower pump or a Check-Mate priming piston pump.

Feature	2-Ball Pump Configuration (15:1 Ratio)	Check-Mate Pump Configuration
Pail/Container Size	20 Liters (5 Gallons)	20 Liters (5 Gallons)
Maximum Melt Rate	1.3 lb/min (0.6 kg/min)	1.5 lb/min (0.7 kg/min)
Maximum Flow Rate	9.0 lb/min (4.0 kg/min)	12.0 lb/min (5.4 kg/min)
Viscosity Compatibility	Low to medium	Low to ultra-high
Maximum Operating Temp	400°F (204°C)	400°F (204°C)
Max Fluid Working Pressure	1,800 psi (124 bar) [Up to 2,300 psi on newer NXT styles]	1,800 psi (124 bar) [Up to 3,000 psi on newer NXT styles]
Max System Air Supply	100 psi (7 bar)	100 psi (7 bar)

Key Operational Features

Heat Control Zones: Configurable with 4, 8, or 12 customer-defined heat zones to manage downstream heated hoses and valves (the heated platen and pump heat zones do not count toward this limit). It can expand up to 24 zones in tandem operations.
Platen Options:
- Finned Platens: Provides higher melt rates for high-flow or hard-to-melt materials.
- Smooth/Flat Platens: Promotes uniform heating and minimizes material degradation; ideal for expensive, lower-flow materials.
Control Interfaces: Features the EasyKey™ operator interface or an Advanced Display Module (ADM) for programming preventive maintenance, diagnostic logging via USB, and managing process alarms.
Power Requirements: Available in multiple industrial voltage configurations, including 240 VAC and 480 VAC (Single or 3-phase setups depending on part numbers).
