Brother M200x3 5 Axis VMC Yr 2022

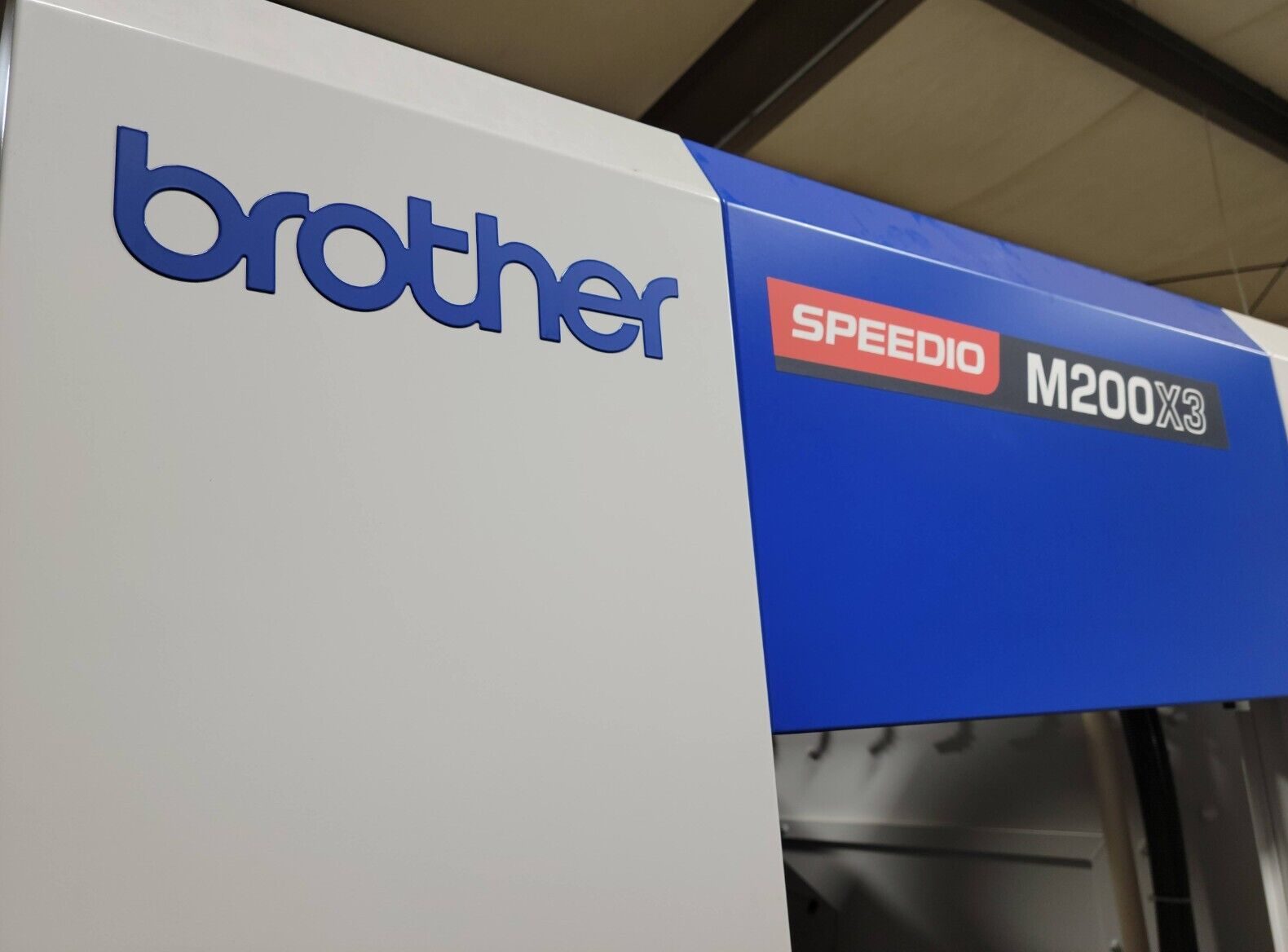

HOT SALE !!! Brother M200x3 5-Axis VMC w/Turning Capability, come with 1 year warranty. The 2022 Brother Speedio M200X3 is a compact, high-speed 5-axis (4+1 mill-turn) multi-tasking vertical machining center. It is designed for process integration, combining high-efficiency milling and turning capabilities in a single setup.

• X-Axis Travel: 200 mm (7.87 inches)
• Y-Axis Travel: 440 mm (17.32 inches)
• Z-Axis Travel: 305 mm (12.0 inches)
• A-Axis (Tilt): -30° to +120° (Roller gear cam design)
• C-Axis (Rotation): 360° (Direct-drive motor for turning)
• Max Jig/Workpiece Size: Ø300 mm × H300 mm
• Table Weight Capacity: 40 kg (Table side) / 11 kg (Tail side)

• Max Spindle Speed: 10,000 RPM (Standard) / 16,000 RPM (Optional)
• Spindle Taper: BT30 / Dual Contact (BIG-PLUS optional)
• Turning Spindle Speed: Up to 2,000 RPM
• Rapid Traverse Rate (X, Y, Z): 50 m/min (1,968 ipm)
• Indexing Feed Rate: A-axis: 60 RPM | C-axis: 200 RPM

• Tool Capacity: 22 positions
• Tool Change System: Double plunger lock for high turning-tool repeatability

• Required Floor Space: 1,280 mm × 3,862 mm (50.4″ × 152″)
• Machine Height: 2,603 mm (102.5″)

• Coolant Through Spindle (CTS)
• Renishaw Workpiece/Tool Probing Systems
• Mist Collector and High-Pressure Pumps
