5AX201YA Nikken Haas 4th 5th Axis Rotary TR160BL TR210BL Brushless Indexer

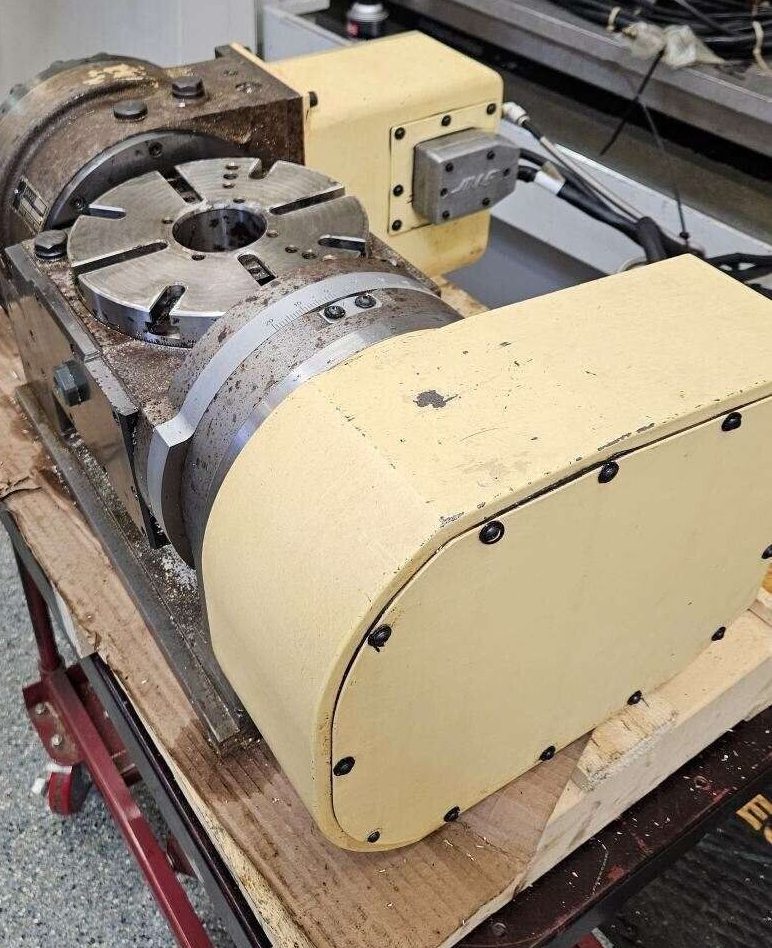

Hot sale Nikken # 5AX201 YA – Haas 4th 5th Axis Rotary TR160BL TR210BL Brushless Indexer only $ 3.200. Nikken Model # 5AX201YA, SN# 5343. Haas 4th 5th Axis Rotary Compared to TR160BL TR210BL Brushless Indexer. This trunnion is built with Haas motors for direct hook up to Haas 4th and 5th axis ready machines. Nikken Physical Measurements, 11.5″ Height X 23″ X 18″.

• Faceplate Diameter: 200 mm (7.874 inches)
• Through Hole Diameter: 60 mm H7 (Spindle bore)
• Physical Dimensions: 11.5″ H x 23″ W x 18″ D
• Resolution / Minimum Increment: 0.001° on both axes
• Clamping System: Pneumatic brake (Air system)
• Drive Mechanism: Patented ion-nitride steel worm wheel paired with a ground solid carbide worm screw (engineered by lydex nikken to completely eliminate gear backlash and maximize rigidity).

• Maximum Workload (0° to 30° Horizontal): 60 kg (132 lbs)
• Maximum Workload (30° to 90° Vertical/Tilt): 40 kg (88 lbs)

• Haas Integration: Built directly with standard Haas-compatible military-style circular connectors. It draws power and encoder feedback directly from the Haas cabinet without requiring external translation boxes.
• Footprint Efficiency: Features a highly compact footprint. It is widely used in mid-sized vertical machining centers, such as the Haas VF-4SS, fitting easily across the short Y-axis table bed while leaving ample room for supplementary vises or secondary setups
