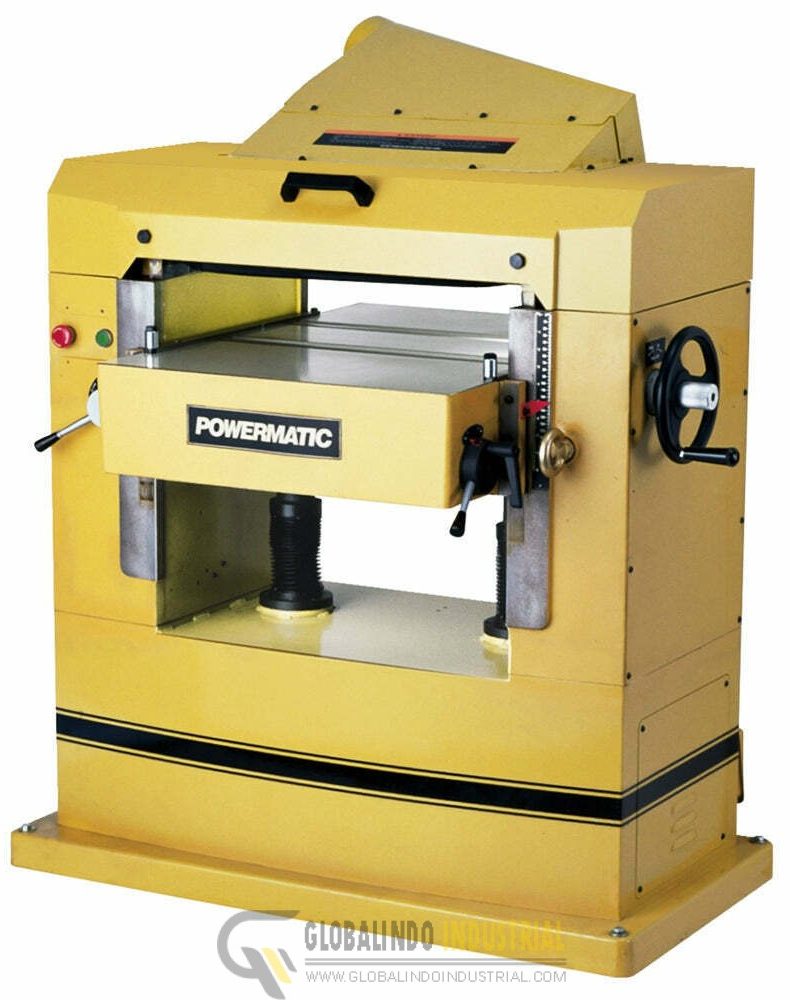

Powermatic 201HH 7,5 Hp 230V 22 Heavy Duty Cast Iron Planer w Helical Head

Powermatic 201HH 7-12-Hp 230V 22 Heavy Duty Cast Iron Planer w Helical Head

Features
Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Cast iron 1300 lb. construction for solid performance without vibration
2 feed speeds – 20/30 fpm – accommodates rough and fine finish work
Segmented infeed roller with sectional chipbreaker allows multiple board planing
Roller bearing-mounted feed rollers for long life
Adjustable bed rollers allow smooth feeding of rough or finished workpieces
Oversized cast iron table travels on 2 large lead screws for heavy duty support
Dust collection port
Adjustable foot pads
What?s in The Box
Powermatic 201HH, 22″ Planner, 7.5HP 1PH 230V, Helical Head

Tool kit
Owner’s Manual
Model 1791267
UPC 662755955853
Style (Type) Planer
Cutterhead Speed (RPM): 4,800
Cutterhead Diameter (In.) : 3-1/4
Number of Knives : 150 Four-Sided Inserts
Maximum Depth of Cut (In.) : 3/16
Maximum Planing Width (In.) : 22
Maximum Planing Thickness (In.) : 9-1/4
Minimum Planing Length (In.) : 10
Feed Rate (FPM) : 20, 30
Number of Speeds : 2
Infeed Roller Diameter (In.) : 3
Segmented Infeed Roller Diameter (In.) : 3
Outfeed Roller Diameter (In.) : 3
Bed Rollers Adjustable from Front : 2
Maximum Height of Rollers Parallel to Tabletop (In.) : 0.05
Table Size (L x W) (In.) : 32-1/4 x 24
Table Support : 2 Column
Column Diameter (In.) : 2-1/2
Dust Collection Minimum CFM Required (CFM) : 900
Dust Port Outside Diameter (In.) : 5
Motor Power (HP) : 7-1/2
Motor Phase : 1
Motor Voltage (V.) : 230
