$18,700.00
Contact UsHot Sale Hardinge HLV-H-11364T Precision Tool Room Lathe Only USD $24.700.00 Good condition and ready to use, come with 1 year warranty.

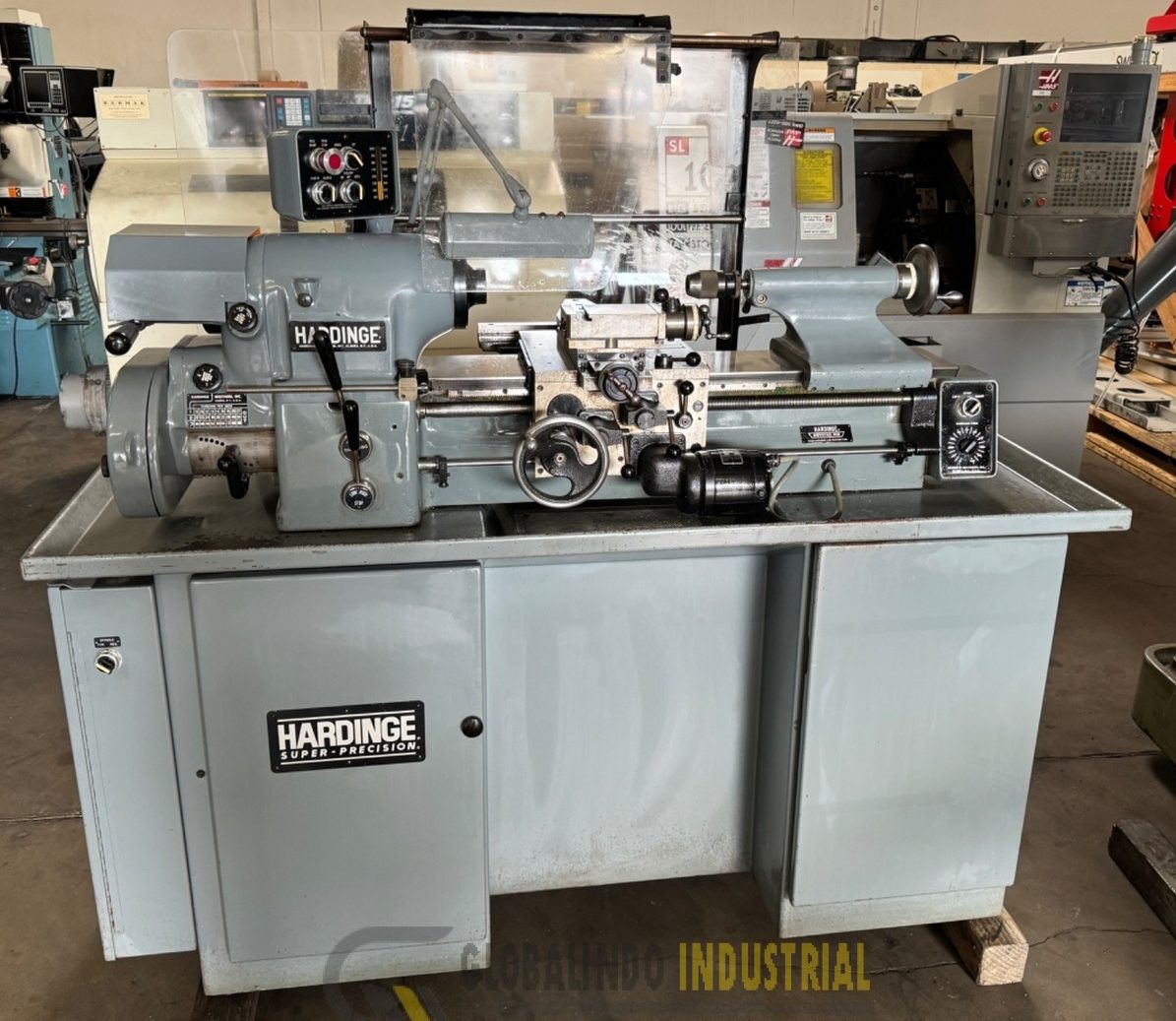

Hardinge HLV-H Precision Tool Room Lathe #7535 #1
Serial # HLV-H-11364T
SPECIFICATIONS:
Swing Over Bed: 11″
Swing Over Cross Slide: 6″
Distance Between Centers: 18″
Spindle Speeds (Variable): 125- 3,000 RPM
Spindle Nose: 4 Degree Taper
Hole Through Spindle: 1 1/4″
Threads Inch: 11- 108 TPI
Feeds (Variable): 1/4- 7 IPM
Tailstock Quill Taper: #2 MT
Tailstock Quill Travel: 3 3/4″
Motor: 1 1/2 HP
Dimensions (L x W x H): 71″ X 38″ X 65″
Weight: 1,800 Lbs.
EQUIPPED WITH:
Full Turret of 5C Collets
Tailstock
