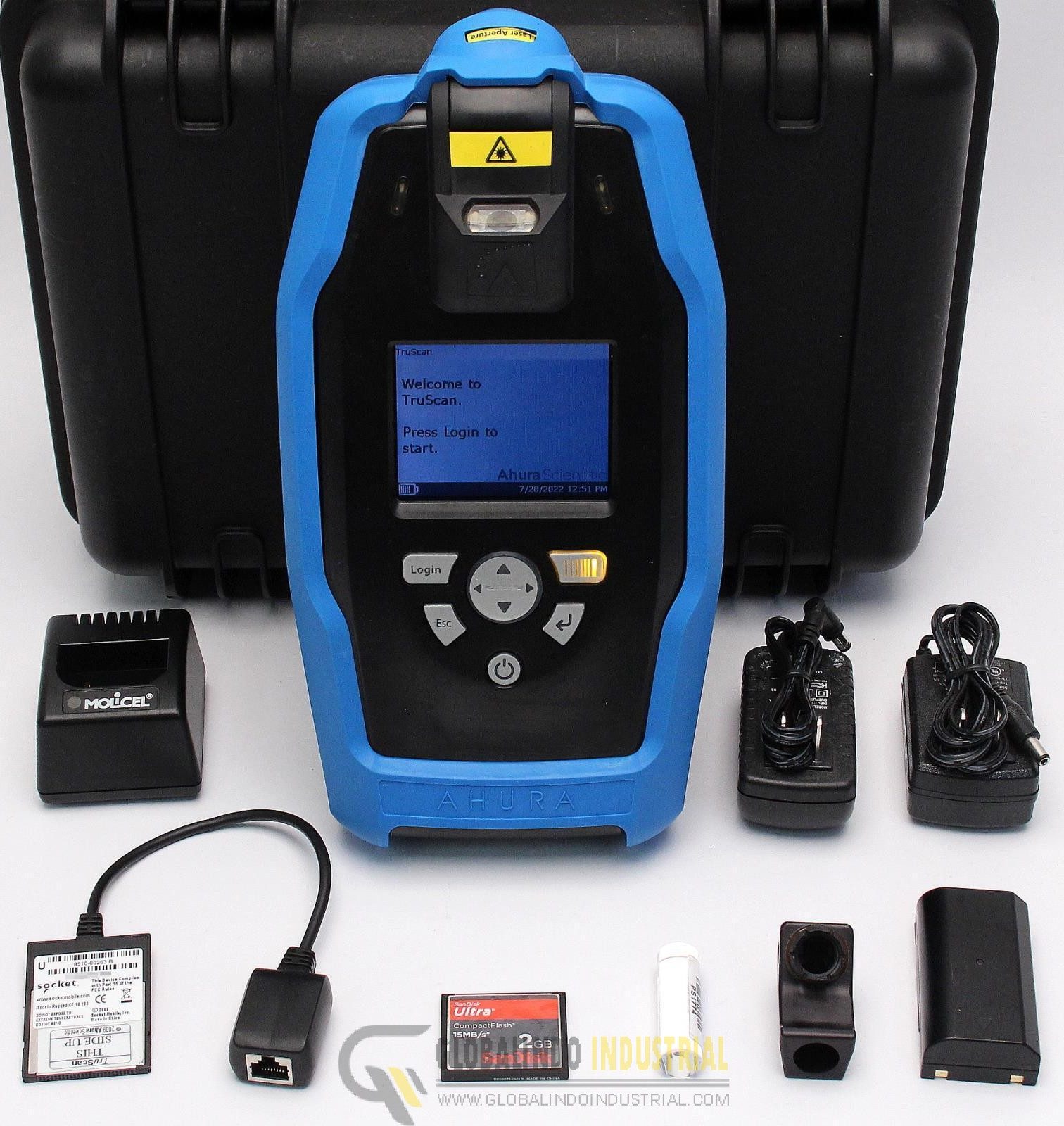

Ahura Thermo Fisher TruScan Raman Material Verification Analyzer

Ahura Thermo Fisher TruScan Raman Material Verification Analyzer

The Ahura Thermo Fisher TruScan is a portable, lightweight device for quick identification of raw materials. Proven and simple to integrate into cGMP environments, the TruScan analyzer was created to satisfy the exacting standards of pharmaceutical production operations.

With its non-destructive point-and-shoot operation and unparalleled ease of use, it minimizes exposure and contamination risk by allowing material identification through sealed packaging. The TruScan analyzer can identify the chemical authenticity of a container’s contents in a matter of seconds by using Raman spectroscopy.

Key Benefits Include:

Ease-of-use
Its regulated workflow and user-friendly interface reduce user error and guarantee that even inexperienced users may get started right away.

Handheld
The analyzer can be used on the loading dock, in the warehouse, or anywhere quick material verification is needed because it weighs less than 4 pounds (1.8 kg).

Results in seconds
In a matter of seconds, the point-and-shoot process provides a straightforward PASS/FAIL outcome.

Remain compliant
The TruScan analyzer is certified by UL and CE and complies with 21 CFR Part 11. It features integrated self-test diagnostics, such as system calibration to ASTM and NIST standards and system checks at the beginning of each measurement.

Applications Include:

• Incoming raw material identity verification
• Inspection of intermediate and final products
• Process troubleshooting
• Counterfeit identification

Ahura Thermo Fisher TruScan Raman Specifications:

• Raman Spectrum Range: 250 cm- 1 to 2875 cm- 1
• Spectral Resolution: 7 to 10.5 cm- 1 (FWHM) across range
• Laser (excitation wavelength): 785 nm +/- 0.5 nm, 2 cm- 1 linewidth
• Laser Output: Auto-adjusted, 300 mW or lower
• Collection Optics: NA = 0.33; 18 mm working distance; 0.2 mm to 2.5 mm spot size
• Exposure: Automatic (100 ms minimum)
• Measurement Accessories: Vial holder; universal tablet holder; FlexProbe (fiber-optic extension probe)
• Electronic Records and Signatures: Designed for use in 21 CFR 11 compliant environments
• Battery: Rechargeable 7.4 V Internal Lithium Ion Battery; >5 hours at 25 C
• External Power Supply: Wall plug transformer 100-240 V AC 50/60 Hz
• Weight: < 4 lbs. (<1.8 kg)
• Size: 12 x 6 x 3 (30 cm x 15 cm x 7.6 cm)
• Operating Temperature: -20 C to +40 C
